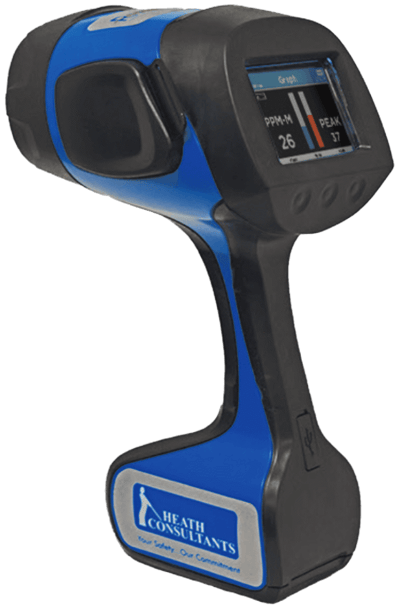

RMLD Complete Solution (RMLD-CS™)

Brand: Heath Consultants Incorporated
Heath’s RMLD technologies have led the industry for remote methane detection since the release of the original unit in 2005.

Our newest model the RMLD Complete Solution (RMLD-CS) utilizes the same TDLAS technology but in a more convenient, lightweight, single unit package without compromising performance.

The RMLD-CS is field rugged and operates under a variety of field conditions including a wide temperature range, light rain and fog.

The RMLD-CS is Intrinsically Safety (IS) with a rating of Class I, Division II, which allows operators to use it indoors and within potentially hazardous environments such as compressor stations.

With detection up to 100 feet away operators can safely survey in areas that may be difficult to reach such as busy roadways, yards with dogs, fenced off areas, compressor stations, overhead piping and other hard to access places.
Features
  • Intrinsically safe
  • Rechargeable/replaceable battery
  • Dual battery charger
  • Mobile App support
  • Ergonomic housing
  • Lightweight
  • Graphical user interface
  • Internal data logging
  • WiFi
  • GPS
  • Bluetooth BLE
  • Color camera and display
show more
Heath’s RMLD technologies have led the industry for remote methane detection since the release of the original unit in 2005.

Our newest model the RMLD Complete Solution (RMLD-CS) utilizes the same TDLAS technology but in a more convenient, lightweight, single unit package without compromising performance.

The RMLD-CS is field rugged and operates under a variety of field conditions including a wide temperature range, light rain and fog.

The RMLD-CS is Intrinsically Safety (IS) with a rating of Class I, Division II, which allows operators to use it indoors and within potentially hazardous environments such as compressor stations.

With detection up to 100 feet away operators can safely survey in areas that may be difficult to reach such as busy roadways, yards with dogs, fenced off areas, compressor stations, overhead piping and other hard to access places.
Features
  • Intrinsically safe
  • Rechargeable/replaceable battery
  • Dual battery charger
  • Mobile App support
  • Ergonomic housing
  • Lightweight
  • Graphical user interface
  • Internal data logging
  • WiFi
  • GPS
  • Bluetooth BLE
  • Color camera and display

Specifications

Weight

  • 3 lbs (approx.)

Carry Case Dimensions

  • 21” x 17.5” x 9.5”

Display

  • 3.5” color LCD, 320 x 240 resolution

Battery

  • Removable
  • Rechargeable
  • Lithium-ion pack, 10.8 Vdc at 3.2Ah

Battery Run Time

  • 8 hours at 32° F (approx.)

Battery Charger

  • External, 110-240 Vac, 50/60 Hz Universal

Charge Time

  • 2-3 hours full charge (approx.)

Detection Method

  • Tunable Diode Laser Absorption Spectroscopy (TDLAS)

Detection Distance

  • 100 ft (30 m) nominal - may vary due to background type and conditions

Measurement Range

  • 0 to 50K ppm-M

Sensitivity

  • 5 ppm-M at distances from 0 to 100 ft (30 m)

Beam Size

  • Conical in shape with a 22” diameter at100 ft (55 cm at 30 m)

IR Laser

  • Class I

Green Spotter

  • Class 2(II) < 5 mW @ 510-530 nm
  • Spot size is 7 mm at 15M
  • Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

Color Camera: Aperture

  • f/2.6

Color Camera: FOV

  • 94DEG (at 6.0 mm image circle)

GNSS Compatibility

  • GPS
  • GLONASS
  • Beidou
  • Galilieo

Communication

  • USB Dual Mode - flash drive and communications
  • USB Port Max. Rating: Um = 5 V, In = 5 A Bluetooth 4.2 BLE
  • WiFi b/g

Digital Methane Detection (DMD)

  • Audible tone and visual alerts when detection threshold exceeded

Adjustable Detection Alarm Level

  • 1 to 999 ppm-M

Alarm Response Time

  • Typically 0.1 - 0.2 seconds

Real Time (RT)

  • Continuous beep rate relative to concentration from 10-1000 ppm-M

System Fault & Warnings

  • Audible alarm and visual indication on the display

Built-In Self-Test

  • Verifies operation and adjusts laser wavelength for maximum sensitivity

Test Gas Cell

  • Integrated within carrying case

Operating Temperature

  • 0° to +122° F (-17° to 50° C)

Humidity

  • 5 to 95 % RH, non-condensing

Altitude

  • Up to 2000 M

Environment of Use

  • Pollution Degree 2 or better. Outdoor use

Ingress Protection

  • IP54 (water splash and dust resistant)

Compliance

  • EMC (EN 61000-6-2, EN 6100-6-4)

Low Voltage Directive

  • (2014/35/EU)

Radio Equipment Directive

  • (2014/53/EU)

Regulatory

  • ETSI EN 301 489-1 v2.2.0
  • EN 61326-1:2013
  • 47 CFR Part 15 & ICES-003

Ordinary Location Safety

  • UL 61010-1
  • CAN/CSA C22.2 No 61010-1-12

Hazardous Location Safety

  • Class I, Zone 2, AEx ic op is IIA T4 Gc
  • Class I, Div. 2, Group D Intrinsically Safe
