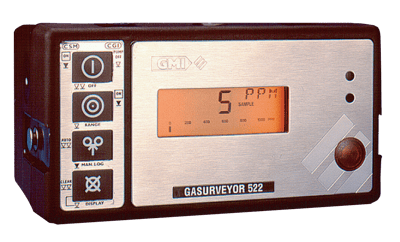

GS500 Series Portable Gas Leak Detector

Brand: Teledyne Technologies Incorporated
Request Information
CSA CSA
The Gasurveyor 500 Series is the most flexible range of gas detectors available from GMI. By simple selection of hardware and software options, the instrument can be readily configured to suit your exact application.

Offering highly accurate and reliable instrumentation in an extremely robust, anti-static case, the Gasurveyor 500 Series measures gases common in many applications.

Any combination of flammable gas from parts per million (ppm) through Lower Explosive Limit (LEL) to percent volume, oxygen, carbon monoxide and hydrogen sulphide can be selected to ensure that your exact requirements are met.

All of the Gasurveyor 500 Series are dual mode instruments, making them suitable for both surveying work and confined space.
Features
  • Range of 4 button and 2 button instruments
  • ATEX Certified
  • Auto range LEL/Vol %
  • Four Button Series Dual mode with Datalogging
  • Up to four gases
  • Robust durable case
  • Auto calibration available
The Gasurveyor 500 Series is the most flexible range of gas detectors available from GMI. By simple selection of hardware and software options, the instrument can be readily configured to suit your exact application.

Offering highly accurate and reliable instrumentation in an extremely robust, anti-static case, the Gasurveyor 500 Series measures gases common in many applications.

Any combination of flammable gas from parts per million (ppm) through Lower Explosive Limit (LEL) to percent volume, oxygen, carbon monoxide and hydrogen sulphide can be selected to ensure that your exact requirements are met.

All of the Gasurveyor 500 Series are dual mode instruments, making them suitable for both surveying work and confined space.
Features
  • Range of 4 button and 2 button instruments
  • ATEX Certified
  • Auto range LEL/Vol %
  • Four Button Series Dual mode with Datalogging
  • Up to four gases
  • Robust durable case
  • Auto calibration available
Close
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Size

  • 180 x 95 x 105 mm (7.1" x 3.7" x 4.1")

Weight

  • 1.7 kg (3.75 lbs)

Display

  • LCD with Automatic Backlighting

Temperature Range

  • -20° to +50° C (-4° to +122° F)

Humidity

  • 0 to 90% RH Non-condensing

Alarm

  • Sounder: In Excess of 80 dB(A), Typically 85 dB(A) @ 1 m
  • Highly Visible Flashing LED

Battery

  • 4 ‘D’ Size Alkaline Cells or Rechargeable Battery Pack

Battery Life

  • 15 hrs Alkaline, 9 hrs Rechargeable

Charge Time

  • Typically 6 hrs

Material of Construction

  • Moulded Polycarbonate Case

Response Time

  • LEL Flammable: 3 secs (t50); 5 secs (t90)
  • Oxygen: 7 secs (t90) Toxics: 15 secs (t90)

Ingress Protection

  • IP54

Certifications & Approvals

  • IECEx / ATEX
  • CSA
  • UL
  • CE

Sensing Range

  • Flammable LEL / Volume: 0 to 100%
  • O2: 0 to 25%
  • Flammable ppm: 0 to 1,000 ppm
  • H2S: 0 to 200 ppm
  • CO: 0 to 1,000 ppm

Resolution

  • Flammable ppm, CO & H2S: 1 ppm
  • Flammable LEL: 0.1% (0 to 9.9%), or 1% (10 to 100%)
  • Flammable Volume/O2 (21 to 25%): 1%
  • O2 (0 to 21%): 0.1%
