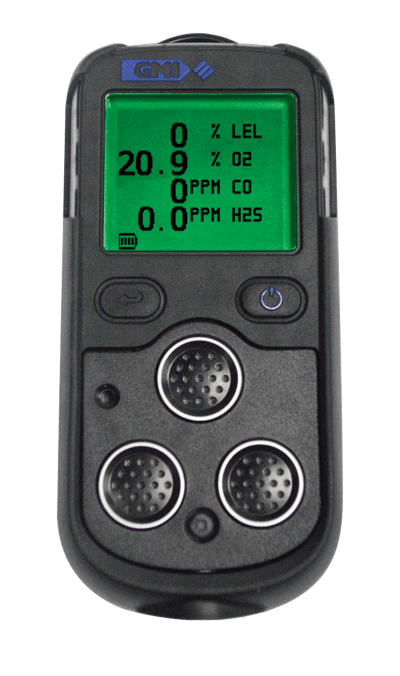

PS200 Series Portable 4-Gas Monitor

Brand: Teledyne Technologies Incorporated
The PS200 Series combines quality, ruggedness and advanced technology in a user friendly, portable gas monitor. It is compact, lightweight, water resistant, extremely robust, and is certified to multiple international and regional standards.

The PS200 can measure any combination of LEL, O2 , CO and H2 S making it suitable for a wide range of personal monitoring and confined space applications.

In addition to extensive datalogging capabilities, the PS200 is available with an optional internal pump and an wide range of accessories to meet variety of applications.

Importantly, the PS200 has been designed to enable easy user maintenance. Including fully automatic calibration station to simplify product compliance.
Features
  • Simple 2-button operation
  • Any combination of LEL/O2/CO/H2S
  • Audible, visual and vibrating alarms
  • Fully certified
  • Internal pump (optional)
  • Datalogging capabilities (up to 6 months)
  • Run-time up to 80 hours, when using low power LEL sensor (optional)
  • Configurable operation
  • Quick field calibration (optional)
  • Lightweight
  • Robust construction
  • Sensor integrity checking
  • Ease of maintenance
show more
The PS200 Series combines quality, ruggedness and advanced technology in a user friendly, portable gas monitor. It is compact, lightweight, water resistant, extremely robust, and is certified to multiple international and regional standards.

The PS200 can measure any combination of LEL, O2 , CO and H2 S making it suitable for a wide range of personal monitoring and confined space applications.

In addition to extensive datalogging capabilities, the PS200 is available with an optional internal pump and an wide range of accessories to meet variety of applications.

Importantly, the PS200 has been designed to enable easy user maintenance. Including fully automatic calibration station to simplify product compliance.
Features
  • Simple 2-button operation
  • Any combination of LEL/O2/CO/H2S
  • Audible, visual and vibrating alarms
  • Fully certified
  • Internal pump (optional)
  • Datalogging capabilities (up to 6 months)
  • Run-time up to 80 hours, when using low power LEL sensor (optional)
  • Configurable operation
  • Quick field calibration (optional)
  • Lightweight
  • Robust construction
  • Sensor integrity checking
  • Ease of maintenance

Specifications

Certifications & Approvals

  • ATEX
  • IECEx
  • CSA, FM, ETL, UL
  • CE
  • INMETRO
  • KC (Korea)
  • Marine Directive

Sensing Range

  • O₂: 0 to 25%
  • LEL: 0 to 100% LEL
  • CO: 0 to 1,000 ppm
  • H₂S: 0 to 100 ppm

Sensor Type

  • Electrochemical
  • Catalytic Bead

Dimensions

  • 121 x 59 x 32 mm (4.8” x 2.3” x 1.3”)

Weight

  • 230 g (8 oz) with Pump
  • 215 g (7.6 oz) without Pump

Display

  • Green and Red LCD with Backlight

Humidity

  • 0 to 95% Non-condensing

Temperature Range

  • -20° to +50° C (-4° to 122° F)

Alarm

  • High Visibility Flashing LED, Piercing >90 dB Audible, Vibrating

Battery

  • Lithium Ion Rechargeable Battery
  • Run Time: Up to 14 hrs (Diffusion)
  • Up to 8 hrs (Pumped)
  • Charging Time < 4 hrs

Battery Life

  • 8 hours Continuous Alkaline or Rechargeable

Enclosure

  • High Impact Rubberized Polycarbonate Case

Drop Test

  • 3 m (10 ft)

Ingress Protection

  • IP67

Warranty

  • 2 Years

Response Time (T90)

  • LEL = 15 secs (IEC 60079-29-1)
  • O2 = 12 secs (BSEN 50104)
  • CO < 20 secs
  • H2S < 20 secs
