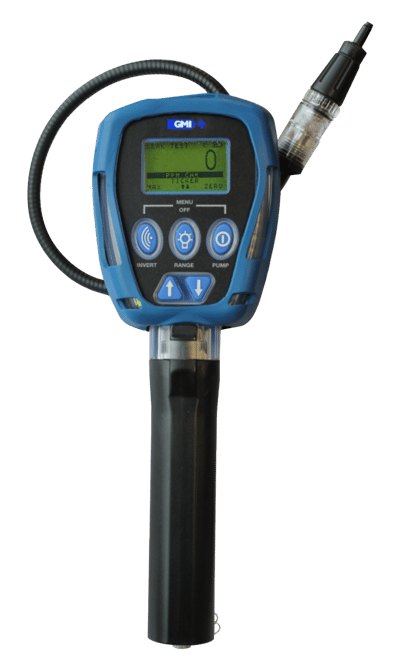

GT Series Portable Gas Detection

Brand: Teledyne Technologies Incorporated
Request Information
CSA CSA
The GT Series is a range of Portable Gas Detection instruments that combine quality, ruggedness and advanced technology in a user friendly, hand-held gas detector.

It has been designed for the gas industry, satisfying all the needs of service technicians within a single unit.

Applications: Leak test, confined space entry, barhole testing, carbon monoxide, purge, sniffer pressure leak tightness
Features
  • Seven modes of operation
  • Methane leak detection from PPM to Volume gas with ultrafast ppm response
  • Optional O₂, CO, and H₂S ranges
  • Manual and automatic data logging
  • 'Ticker' (Geiger) indicator on ppm range (visual and audible)
  • Flashlight and pressure range
The GT Series is a range of Portable Gas Detection instruments that combine quality, ruggedness and advanced technology in a user friendly, hand-held gas detector.

It has been designed for the gas industry, satisfying all the needs of service technicians within a single unit.

Applications: Leak test, confined space entry, barhole testing, carbon monoxide, purge, sniffer pressure leak tightness
Features
  • Seven modes of operation
  • Methane leak detection from PPM to Volume gas with ultrafast ppm response
  • Optional O₂, CO, and H₂S ranges
  • Manual and automatic data logging
  • 'Ticker' (Geiger) indicator on ppm range (visual and audible)
  • Flashlight and pressure range
Close
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Certifications & Approvals

  • ATEX
  • IECEx
  • CSA, FM, ETL, UL
  • CE

Sensing Range

  • O₂: 0 to 25%
  • CH₄: 0 to 100% LEL
  • CH₄: 0 to 100% Volume
  • CO: 0 to 2,000 ppm
  • H₂S: 0 to 100 ppm
  • Dual Tox (CO/H₂S): 0 to 2,000 ppm / 0 to 100 ppm
  • CH₄ 0 to 10,000 ppm
  • Water Gauge: 0 to 60 in.H₂O or 0 to 150 mBar

Sensor Type

  • Electrochemical
  • Semiconductor
  • Catalytic Bead
  • Thermal Conductivity
  • Differential Pressure Transducer

Dimensions

  • 290 x 95 x 43 mm (11.4" x 3.7" x 1.7” (Excl. Probe))

Weight

  • 0.78 kg (1.7 lbs) (Incl. Probe and Batteries)

Display

  • LCD with Backlighting

Humidity

  • 0 to 95% Non-condensing

Alarm

  • High Visibility LEDs on Both Sides of Instrument
  • 85 dB Audible Alarm

Battery

  • 3 ‘C’ Type Batteries – LR14 Alkaline or Rechargeable

Battery Life

  • 8 hours Continuous Alkaline or Rechargeable

Material of Construction

  • High Impact Polycarbonate ABS Blend

Ingress Protection

  • IP54

Warranty

  • 2 Years
Close

Applications

  • Leak Test
  • Confined Space Entry
  • Barhole Testing
  • Carbon Monoxide
  • Purge
  • Sniffer Pressure Leak Tightness
