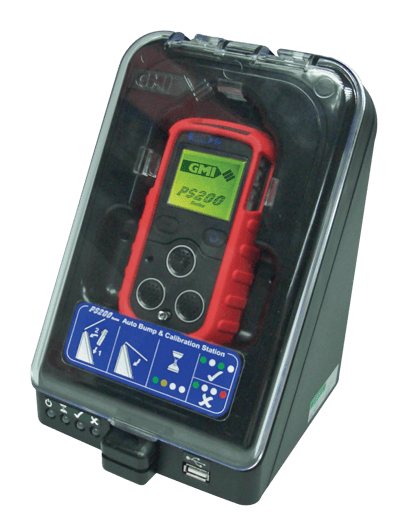

ABC PS200 Automatic Bump & Calibration Station

Brand: Teledyne Technologies Incorporated
Request Information
CSA CSA
To complement the Personal Surveyor product line, Teledyne has developed a compact, robust and easy to use Auto Bump & Calibration Station that can provide full bump and calibration options.

Data transfer is facilitated using a USB memory stick with Standalone software that is simple to set up and customise based on end users’ specifications. Standalone, PC, and ethernet versions are available.

Standalone
By adding the Auto Bump & Calibration Station to your PS200 package, test data can be easily retrieved using specific software in a user-friendly time logged format. This gives you the ability to create and print your personalised calibration certificate.

PC
Allows easy configuration (bump test or calibration) of Auto Bump & Calibration Station and allows all results to be automatically stored to a database on the PC. The stored results can be easily viewed and calibration certificates produced. The history of all results can be easily viewed and reports of instruments can be easily compiled.

Ethernet
Same as PC except multiple units can be connected to a network allowing one PC to control and receive data.
To complement the Personal Surveyor product line, Teledyne has developed a compact, robust and easy to use Auto Bump & Calibration Station that can provide full bump and calibration options.

Data transfer is facilitated using a USB memory stick with Standalone software that is simple to set up and customise based on end users’ specifications. Standalone, PC, and ethernet versions are available.

Standalone
By adding the Auto Bump & Calibration Station to your PS200 package, test data can be easily retrieved using specific software in a user-friendly time logged format. This gives you the ability to create and print your personalised calibration certificate.

PC
Allows easy configuration (bump test or calibration) of Auto Bump & Calibration Station and allows all results to be automatically stored to a database on the PC. The stored results can be easily viewed and calibration certificates produced. The history of all results can be easily viewed and reports of instruments can be easily compiled.

Ethernet
Same as PC except multiple units can be connected to a network allowing one PC to control and receive data.
Close
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Size

  • 200 x 140 x 135 mm (7.9” x 5.5” x 5.3”)

Weight

  • 1.2 kg (43 oz)

Interface

  • Standalone / USB / Ethernet

Operating Temperature

  • -10° to +40° C (14° to 104° F)

LED Indicator

  • Power (Green) / Testing (Yellow) / Pass (Green) / Fail (Red)

Testing Time

  • Bump Test 60 secs
  • Calibration Test 90 secs

Data Stroage

  • Up to 5,000 Bump & Calibration Results

Power Supply

  • 12 Vdc, 2 A

Gas Ports

  • 3 (Air, Combi Gas & Exhaust)
