Images are representations only.

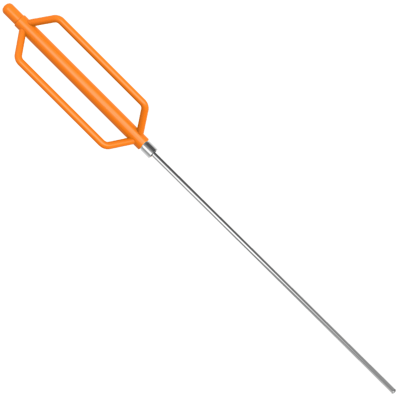

Plunger Bars

Brand: Heath Consultants
Heath provides the utility industry with the most rugged and reliable tool you can find for all your underground probing needs.

Heath Plunger Bars are specially designed to outperform all others.

Heath Plunger Bars have a fitted piston rod for maximum safety and dependability, as well as a unique piston action for easy removal of the rod.
Features
  • Tough, one-man probing tools that easily drive 1/2-in. holes to depths of up to 40 inches
  • Two models: Heavy Duty or Utility
  • Plastic-coated handles are insulated and provides up to 10,000 volts shock resistance at the top 18” of handle. Laboratory tested
  • Tempered steel rods come in two sizes: 40” probe depth, 52” probe depth
  • Penetrate through even the most dense soil
Heath provides the utility industry with the most rugged and reliable tool you can find for all your underground probing needs.

Heath Plunger Bars are specially designed to outperform all others.

Heath Plunger Bars have a fitted piston rod for maximum safety and dependability, as well as a unique piston action for easy removal of the rod.
Features
  • Tough, one-man probing tools that easily drive 1/2-in. holes to depths of up to 40 inches
  • Two models: Heavy Duty or Utility
  • Plastic-coated handles are insulated and provides up to 10,000 volts shock resistance at the top 18” of handle. Laboratory tested
  • Tempered steel rods come in two sizes: 40” probe depth, 52” probe depth
  • Penetrate through even the most dense soil
Close

Specifications

Brand

40” Probing Depth Complete Bars

  • Utility Straight: 64" (162.6 cm), 10 lb (4.5 kg)
  • Utility Anglefin: 64" (162.6 cm), 13.6 lb (5.9 kg)
  • Heavy Duty Straight: 64" (162.6 cm), 13.5 lb (6.2 kg)
  • Heavy Duty Anglefin: 64" (162.6 cm), 16.6 lb (7.6 kg)

52” Probing Depth Complete Bars

  • Heavy Duty Straight: 76" (193 cm), 14.1 lb (6.4 kg)
  • Heavy Duty Anglefin: 76" (193 cm), 17.2 lb (7.8 kg)

Handles

  • Utility Straight: 22.6" x 1.7 (57.4x 4.3 cm), 6.2 lb (2.8 kg)
  • Utility Anglefin: 22.6" x 6.5" (57.4 x 16.51 cm), 9.8 lb (4.4 kg)
  • Heavy Duty Straight: 23.5" x 2.1" (59.7 x 5.3 cm), 8.9 lb (4.1 kg)
  • Heavy Duty Anglefin: 23.7" x 7.7" (60.2 x 19.5 cm), 12 lb (5.4 kg)

Rods

  • 40" Utility Standard: 59.5" x 0.5" (151 x 1.27 cm), 3.8 lb (1.7 kg)
Close

Applications

  • Test Holes - Probe Gas Leaks
  • Use for Preliminary Pinpointing
  • Locate Underground Structures
  • Sub-Soil Determination - Tracing Ledge, etc.
  • Tree Feeding - Directly Fertilize Roots
