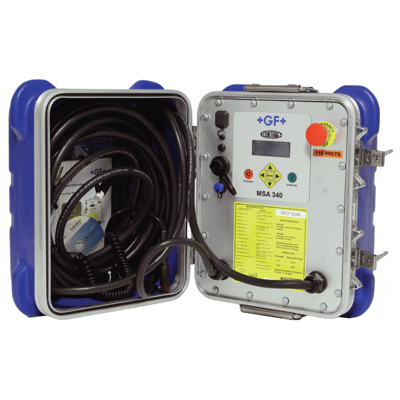

MSA 340 Electrofusion Processor

Part Number: 360029069 Brand: Georg Fischer Ltd
Price
Request a Quote
Stock
Contact for Availability
Add to Quote
Request Information

If you have an MSA 340 Electrofusion Processor that requires maintenance or repair, CR Wall has manufacturer certified service facilities in Ontario and Alberta. Please contact us here so we can get your processor back in the field.

CSA CSA
Processor Version: Georg Fischer MSA 340 115V CSA Approved

The MSA processor is an electrofusion control unit for the electrofusion joining of PE pipes.

Fusion parameters input can be accomplished with a fusion barcode according to ISO/TR 13950 standard, using the dedicated CP mode (implanted resistor), or manually.

The internal microprocessor controls the values of the fusion parameters, sets the power output accordingly, and using the messages shown on the LCD display, guides the operator to successfully execute all the necessary operations.

The MSA 340 has GPS capability and stores up to 1000 fusions that can be transferred to a PC via USB memory stick, in either PDF or CSV formats.
Features
  • Integrated hard shell carrying case
  • Barcode scanner for traceability
  • Built in GPS
Processor Version: Georg Fischer MSA 340 115V CSA Approved

The MSA processor is an electrofusion control unit for the electrofusion joining of PE pipes.

Fusion parameters input can be accomplished with a fusion barcode according to ISO/TR 13950 standard, using the dedicated CP mode (implanted resistor), or manually.

The internal microprocessor controls the values of the fusion parameters, sets the power output accordingly, and using the messages shown on the LCD display, guides the operator to successfully execute all the necessary operations.

The MSA 340 has GPS capability and stores up to 1000 fusions that can be transferred to a PC via USB memory stick, in either PDF or CSV formats.
Features
  • Integrated hard shell carrying case
  • Barcode scanner for traceability
  • Built in GPS
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Input Voltage and Frequency

  • 115 V (+/-20%) 50 – 70 Hz

Certifications & Approvals

  • CSA
  • ISO 12176-2
  • ISO 12176-3
  • ISO 12176-4
  • EN 60335-1 (Safety)
  • EN 61000-6-2 (EMC)
  • EN 610006-4 (EMC)

USB Port

  • Type A

Power Cable Length

  • 12 ft

Fusion Cable Length

  • 25 ft

Capacity of Internal Memory

  • 1000 Fusions

Weather Protection Factor

  • IP 54

Dimensions

  • 13.5" x 12.5" x 16.8"

Weight

  • 52 lbs

Operating Temperature

  • -10 °F to 120°F

Internal Temperature

  • -10°F to 190°F

Input Waveform

  • AC (sine, square, or quasi-sine)
