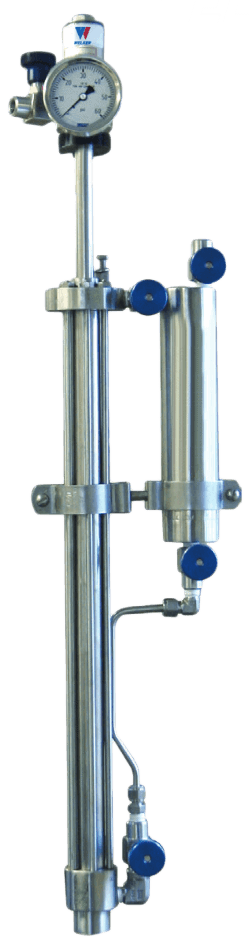

IRA-4SS Probe Regulator

Brand: Welker, Inc
Request Information
The Welker IRA-4SS Probe Regulator is designed to regulate a gas sample stream to an analyzer without interrupting pipeline flow.

With AI Control™, the probe automatically inserts and retracts using pipeline pressure.

For real-time natural gas analysis of high-volume lines, you need a sample probe that can deliver a continuous supply of representative samples to your analyzer at the appropriate pressure. Marrying two of our leading products, we designed the Welker Original IRA-4SS Automatic Insertion Probe Regulator to do just that. The safety, convenience, and responsive control you need for accurate online sampling is here in a single user-friendly device.
Features
  • Provides properly conditioned sample stream
  • Insert and retract probe at full pipeline pressure
  • Easily adjustable to multiple insertion depths
  • Point of regulation occurs at the tip of the probe in the flowing stream
  • Probe design inhibits creation of free liquids and mitigates the Joule-Thomson effect
  • Diaphragm design for optimizing low-pressure output sensitivity
Benefits
  • Proven safety with AI Control™ provides peace of mind
  • Reduces line pack for analyzer applications
  • Probe retraction design allows maintenance to be performed during continuous pipeline operation
  • Design allows for easy installation and intuitive operation
  • Transferable from location to location
The Welker IRA-4SS Probe Regulator is designed to regulate a gas sample stream to an analyzer without interrupting pipeline flow.

With AI Control™, the probe automatically inserts and retracts using pipeline pressure.

For real-time natural gas analysis of high-volume lines, you need a sample probe that can deliver a continuous supply of representative samples to your analyzer at the appropriate pressure. Marrying two of our leading products, we designed the Welker Original IRA-4SS Automatic Insertion Probe Regulator to do just that. The safety, convenience, and responsive control you need for accurate online sampling is here in a single user-friendly device.
Features
  • Provides properly conditioned sample stream
  • Insert and retract probe at full pipeline pressure
  • Easily adjustable to multiple insertion depths
  • Point of regulation occurs at the tip of the probe in the flowing stream
  • Probe design inhibits creation of free liquids and mitigates the Joule-Thomson effect
  • Diaphragm design for optimizing low-pressure output sensitivity
Benefits
  • Proven safety with AI Control™ provides peace of mind
  • Reduces line pack for analyzer applications
  • Probe retraction design allows maintenance to be performed during continuous pipeline operation
  • Design allows for easy installation and intuitive operation
  • Transferable from location to location
Close
Close

Specifications

Brand

Materials of Construction

  • 316/316L Stainless Steel

Seat Material

  • Teflon

Seal Material

  • Viton

Pipeline Connection

  • 3/4” MNPT

Outlet Connection

  • 1/4” FNPT

Output Range Options

  • 0-25 psig
  • 0-50 psig
  • 20-100 psig

Insertion Length Options

  • 0-12”
  • 0-18”

Mounting

  • Vertical

Operating Pressure

  • 2160 psig MAOP @ -20° F to 120° F

Probe Diameter

  • 5/8” shaft

Industry Standards

  • Complies with API 14.1, GPA 2166, and ISO 10715
