Description

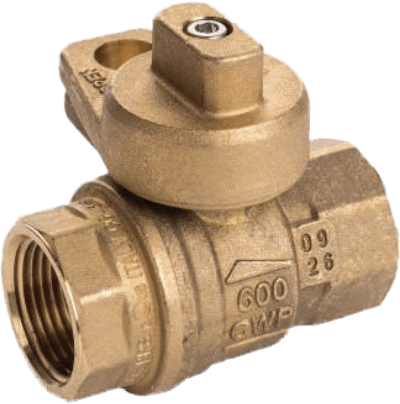

The RuB s.80 tamper proof brass ball valve is a durable and reliable choice for use in natural gas service, specifically designed to be paired with a gas meter, as well as many industrial and commercial valve applications.
Available for order in1/4” – 2” sizes, the s.80 is designed to work under 600 PSI non-shock cold working pressure and a 250 PSI non-shock working pressure for LP-Gas. The s.80 features several key material and design choices which promote a long and reliable service life:
- Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
- Blowout-proof unplated brass stem
- Hot forged brass tamper proof lockwing
- Pure PTFE self-lubricating seats with flexible-lip design
With a full port design and dual seals, the valve can easily be installed in various systems with ease.
Approved by, or in compliance with:
- Canadian Standards Association (United States, Canada)
- GOST-R (Russia)
- RoHS Compliant (EU)
- Underwriters Laboratories (United States, Canada)
- 24 hour 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Cover clearly shows ball position
- Silicone-free lubricant on all seals
- Handle stops on body to avoid stress at stem
- Chrome plated brass ball for longer life
Configure
Specifications
Specifications
Brand
Quality
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Cover clearly shows ball position
- Silicone-free lubricant on all seals
- Handle stops on body to avoid stress at stem
- Chrome plated brass ball for longer life
Body
- Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
- Special design to combine newest technologies in valve and traditional gas-cock requirements
- Finest brass according to EN 12165 and EN 12164 specifications
Stem
- Blowout-proof unplated brass stem
- Maintenance- free, double FPM O-rings at the stem for maximum safety
Sealing
- Pure PTFE self-lubricating seats with flexible-lip design
Threads
- NPT taper ANSI B.1.20.1 female by female threads
Approvals
- Canadian standards Association (United States, Canada)
- GOST-R (Russia)
- RoHS Compliant (EU)
- Underwriters Laboratories (United States, Canada): – Guide YSDT: LP-Gas shut-off valve – Guide YRBX: Flammable liquid shut-off valve – Guide YRPV: Gas shut-off valve for use with natural and manufactured gases – Guide MHKZ: No. 6 oil at 250°
- Kuwait Fire Service Directorate (Kuwait)
- NOTE: approvals apply to specific configurations/sizes only.
Flow
- Full port to DIN 3357 for maximum flow
Handle
- Hot forged brass tamper proof lockwing
Working Pressure & Temperature
- 600 PSI (40 bar) non-shock cold working pressure
- 250 PSI (17 bar) non-shock working pressure for LP-Gas
- -40°F to +350°F (-40°C to +170°C)
- WARNING: freezing of the fluid in the installation may severely damage the valve
Options
- Male by female NPT threads
Upon Request
- Painted gray
