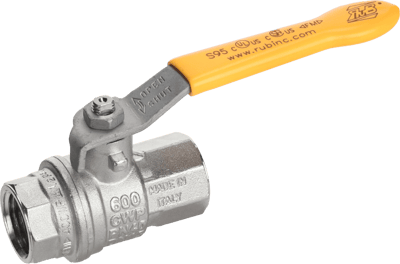

s.95 NPT 1/4" - 4" Nickel Plated Ball Valve

Brand: RuB Inc
The RuB s.95 nickel plated brass ball valve, is a durable and reliable choice for use in natural gas service, as well as many industrial and commercial valve applications.

Available for order in 1/4” – 4” sizes, the s.95 is designed to work under 600 PSI up to 2″, 450 PSI over 2″ non-shock cold working pressure and 250 PSI non-shock working pressure for LP-Gas. The s.95 features several key material and design choices which promote a long and reliable service life:
  • Hot forged sand blasted, nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Blowout-proof nickel plated brass stem
  • Geomet® carbon steel handle with thick PVC dip coating
  • Pure PTFE self-lubricating seats with flexible-lip design
With a full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada)
Features
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem
The RuB s.95 nickel plated brass ball valve, is a durable and reliable choice for use in natural gas service, as well as many industrial and commercial valve applications.

Available for order in 1/4” – 4” sizes, the s.95 is designed to work under 600 PSI up to 2″, 450 PSI over 2″ non-shock cold working pressure and 250 PSI non-shock working pressure for LP-Gas. The s.95 features several key material and design choices which promote a long and reliable service life:
  • Hot forged sand blasted, nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Blowout-proof nickel plated brass stem
  • Geomet® carbon steel handle with thick PVC dip coating
  • Pure PTFE self-lubricating seats with flexible-lip design
With a full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada)
Features
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem

Specifications

Brand

Quality

  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem

Body

  • Hot forged sand blasted, nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 specifications

Stem

  • Blowout-proof nickel plated brass stem
  • Maintenance-free, double FPM O-rings at the stem for maximum safety

Sealing

  • Pure PTFE self-lubricating seats with flexible-lip design

Threads

  • NPT taper ANSI B.1.20.1 female by female threads

Approvals

  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada): – Guide YSDT: LP-Gas shut-off valve – Guide YRBX: Flammable liquid shut-off valve – Guide YRPV: Gas shut-off valve for use with natural and manufactured gases – Guide MHKZ: No. 6 oil at 250°F
  • NOTE: approvals apply to specific configurations/sizes only.

Flow

  • Full port to DIN 3357 for maximum flow

Handle

  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service

Working Pressure & Temperature

  • 600 PSI (40 bar) up to 2″, 450 PSI (30 bar) over 2″ non-shock cold working pressure
  • 250 PSI (17 bar) non-shock working pressure for LP-Gas
  • -40°F to +350°F (-40°C to +170°C)
  • ARNING: freezing of the fluid in the installation may severely damage the valve

Options up to 2" Size

  • Stem extension
  • T-handle
  • Stainless steel handle (1.4016/AISI 430)
  • Oval lockable handle up to 2″, round over 2″
  • Patented locking device for valves up to 4″
  • Stubby handle
  • RuB memory stop designed to be installed with our stubby handle

Upon Request

  • Stainless steel ball (1.4401 / AISI 316)
  • Glass filled PTFE seals
  • Custom design
  • Special configuration for industrial oxygen application
