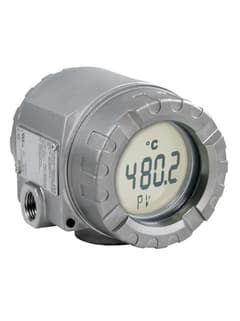

iTEMP TMT162 temperature transmitter

Brand: Endress+Hauser
Request Information

Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART®, FOUNDATION Fieldbus™-, PROFIBUS® PA-communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.



  • Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)

  • HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX350/370, field communicator 475 or remotely via PC

  • FOUNDATION Fieldbus™ ITK 6.1.2

  • PROFIBUS® PA Profile 3.02

  • Optional: stainless steel housing for hygienic or Ex d application

Features

  • High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics

  • Backlit display with large measured value, bar graph and status condition indication

  • Diagnostics information according to NAMUR NE107

  • International approvals such as FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof); marine approval

  • SIL certification as per IEC 61508:2010

  • Galvanic isolation 2 kV (sensor input / current output)

show more

Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART®, FOUNDATION Fieldbus™-, PROFIBUS® PA-communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.



  • Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)

  • HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX350/370, field communicator 475 or remotely via PC

  • FOUNDATION Fieldbus™ ITK 6.1.2

  • PROFIBUS® PA Profile 3.02

  • Optional: stainless steel housing for hygienic or Ex d application

Features

  • High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics

  • Backlit display with large measured value, bar graph and status condition indication

  • Diagnostics information according to NAMUR NE107

  • International approvals such as FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof); marine approval

  • SIL certification as per IEC 61508:2010

  • Galvanic isolation 2 kV (sensor input / current output)

Close

Specifications

Brand

Measuring principle

  • Field transmitter

Input

  • 2 x RTD, TC, Ohm, mV

Output

  • 1 x analog 4...20 mA / HART FOUNDATION Fieldbus H1 PROFIBUS PA

Auxiliary power supply

  • 11,5...42 V DC (HART)
  • 11,5...30 V DC (Ex ia)
  • 9...32 V DC (FF, PA)
  • 10,5...24 V DC (Ex ia, FF, PA)

Communication

  • HART
  • FOUNDATION Fieldbus
  • PROFIBUS PA

Installation

  • in field

Accuracy

  • (Pt100) <= 0,1 K (HART, FF, PA)
  • (Pt100) <= 0,18 °F (HART, FF, PA)

Galvanic isolation

  • yes

Certification

  • UL rec. Comp (HART)
  • FM IS, NI I/1+2/ABCD
  • CSA IS, NI I/1+2/ABCD
  • ATEX II1G Ex ia IIC T6
  • ATEX II2G Ex d IIC T6, II2D Ex tb IIIC Db
  • ATEX II3G Ex nA IIC T6 Gc
  • ATEX II3G Ex ic IIC T6 Gc
  • ATEX IECEx II2D Ex tb IIIC Db
  • ATEX II1G Ex ia IIC T6, II2D Ex ia IIIC
  • ATEX Ex d, Ex ia
  • FM XP, NI, DIP I,II,III/1+2/A-G
  • CSA XP, NI, DIP I,II,III/1+2/A-G
  • FM XP, DIP, IS, NI I,II,III/1+2/A-G
  • CSA XP, DIP, IS, NI I,II,III/1+2/A-G
  • FM+CSA XP,DIP, IS, NI I,II,III/1+2/A-G
  • CSA General Purpose
  • IECEx Ex ia IIC T6 Ga
  • IECEx Ex ia IIC T6 Ga, Ex ia IIIC Db
  • IECEx Ex d IIC T6 Gb, Ex tb IIIC Db
  • IECEx Ex ia, Ex d
  • NEPSI Ex ia IIC T4-T6
  • NEPSI Ex nA II T4-T6
  • NEPSI Ex d IIC T4-T6
  • marine approval only for HART-protocol
  • SIL2/3 only for HART-protocol
  • EAC Ex ia IIC T6 Ga
  • EAC Ex d IIC T6 Gb
  • UK II3G Ex nA T6 IIC Gc
  • INMETRO Ex db IIC T6 Gb, Ex tb IIIC Db
  • INMETRO Ex ia IIC T6 Ga
