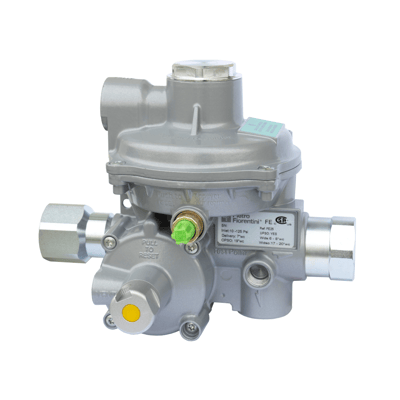

Mod. FE Gas Pressure Regulator
When requesting information, please download the Fillable PDF to provide details about your regulator use case. Instructions for completing the form are found in the footer of the document. Once completed, please upload the document with the Request for Information.
Description
FE is a double-stage self-operated pressure regulator for civil and industrial applications and it is suitable for use with gaseous fluids such as natural gas, LPG and non-corrosive gases.
These regulators are designed to be installed directly on utility meters or on riser mains for civil uses.
They can be installed in any position and in environments or spaces protected against weather. The discharge of the internal relief valve can be conveyed outside in case of installation in closed rooms or underground installations.
The regulators are manufactured according to the UNI 8827 standard and the Italian Ministerial Decree dated 16 Apr. 2008; for the classification of the functional performance, reference shall be made to the EN 16129 and EN 334 standards.
Features- Accuracy Class: 10
- Connections: 1/2″ in-line inlet, 1″ in-line outlet, 3/4″ angled outlet
- Closing Pressure Class SG: 20
- Safety Accuracy Class AG: 10
- Design Pressure: 8.6 bar
- Design Temperature: from -20° to +60° C, on Request From -40° to 60° C Only for BP Version
- Minimum Differential Pressure: 0.15 bar FE6, 0.2 bar FE10, 0.3 bar FE25, 0.6 bar FE50
- Outlet Pressure Range:
- Wds from 13 to 180 mbar for BP, from 180 to 500 mbar for TR
- Wdso from 35 to 299 mbar for BP, from 300 to 800 mbar for TR
- Overflow Trip: 110% to 170% of nominal flow rate
- Range of Inlet Pressure bpu: from 0.15 to 7 bar, on Request 8.6 bar
Specifications
Specifications
Capacity
- FE6: 6 Stm³/h
- FE10: 10 Stm³/h
- FE25: 25 Stm³/h
- FES: 50 Stm³/h
Accuracy Class AC
- Up to 5
Lockup Pressure SG
- Up to 10
Inlet Pressure
- 8.6 bar Max.
Downstream Pressure Regulation Range
- TR: 180 to 500 mbar
- BP: 13 to 180 mbar
Enclosure, Body Material
- Body: Zamak, or Aluminum on Request
Material of Construction
- Seat: Zamak
- Cover: Zamak, Aluminum on Request
- O-Ring: Nitrile Rubber
Diaphragm Material
- Nitrile Rubber (TR: Linen Rubber)
Inlet
- G 1/2” ISO 228/1
Outlet
- G 1” Outlet in Line
- G 3/4” Angled Outlet
Ambient Temperature
- -40° to 60° C
Inlet Temperature Range
- -20° to 60° C
- Up to -10° to 60° C Standard
