Description

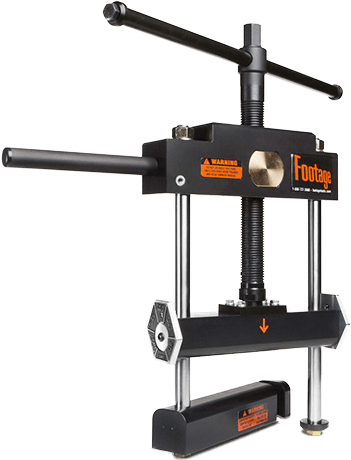

The model C156 Manual Squeeze Off Tool is designed to squeeze 1″ to 4″ PE pipe safely and effectively. Similar to the C100, the C156 features 6-sided, positive locking indexable gauge plates, aircraft grade aluminum squeeze bars, chrome plated steel side shafts and a coated feed screw, reducing corrosion and friction.
This tool can be operated with the detachable torque bar or with a ratchet on the integral hex at the top of the feed screw. The unique swing-out / lock-in bottom bar design allows for quick and easy access to the pipe even in confined spaces, and the detachable stabilizing bar provides added stability during the squeeze process.
The C156 comes complete with a standard 5′ grounding spike to ensure safety during the squeeze process. Custom gauge plates are available upon request.
Specifications
Specifications
Brand
Standard Gauge Plate Settings
- 1” IPS (SDR 11)
- 1¼” (SDR 10, 11, 11.5)
- 1½” (SDR 11)
- 2” (SDR 11, 11.5)
- 3” (SDR 11, 11.5, 13.5)
- 4” (SDR 11, 11.5)
Squeeze Capacity
- 1”- 4”
Height
- 19.5”
Width
- 10.5”
Weight
- 27 lbs (12.5 kg)
