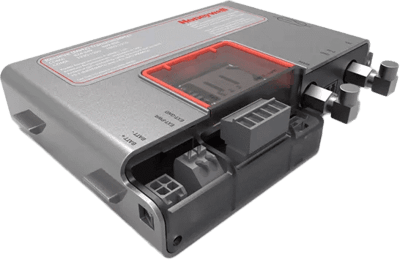

Cloud Link R100 4G Modem

Brand: Honeywell Process Solutions
Request Information
CSA CSA
The Honeywell Cloud Link 4G Modem is a 4G/LTE cellular device intended to process serial data originating from any source, including a Honeywell Electronic Volume Corrector or Data Logger.

Designed for low power applications and outdoor operations, the Cloud Link 4G Modem is a full-featured, easy to configure and troubleshoot Wireless Cellular Modem.

This communication unit is fully field-programmable and simple to use through its Bluetooth Low Energy or serial interfaces and associated set of programming software.

In sleep mode, the modem consumes 100 times less power than competitive products while still being able to be reactivated by an external signal.

Thanks to its targeted design, the Cloud Link 4G Modem requires less power to operate than any other cellular modem available today. It is designed to operate in battery powered applications.

The Cloud Link 4G Modem is CSA, Class I Div 2 approved making it a perfect solution for gas measurement applications where safety is always a concern.

This modem can be configured using the same MasterLink software that is used to configure other Honeywell Mercury® electronic volume correctors and data loggers.

No additional software is required. In addition, MasterLink is now available as an App that can be installed on IOS and Android devices.

Easy to retrofit. The Cloud Link 4G Modem can be easily retrofitted in MiWireless enclosures.

A dedicated kit has been designed to support a smooth transition from 2G/3G to 4G networks.
Features
  • 4G/LTE Transparent Serial Modem
  • Operates with Major Carriers in North America: Certified with At&T, T-Mobile, Verizon, Rogers
  • Falls Back to Umts/Hspa and Gsm/Gprs
  • RS232/485 Interface
  • 1 Digital Input
  • For 2G/3G to 4G Migrations, the Cloud Link 4G Modem is Easy to Retrofit in Miwireless Assemblies
  • Csa C/US Class-I, Div-2
  • Internal Modem Power Control
  • Bluetooth Low Energy Interface can be Used for Wireless Configuration
  • Configured Through Masterlink Programming Software and App
The Honeywell Cloud Link 4G Modem is a 4G/LTE cellular device intended to process serial data originating from any source, including a Honeywell Electronic Volume Corrector or Data Logger.

Designed for low power applications and outdoor operations, the Cloud Link 4G Modem is a full-featured, easy to configure and troubleshoot Wireless Cellular Modem.

This communication unit is fully field-programmable and simple to use through its Bluetooth Low Energy or serial interfaces and associated set of programming software.

In sleep mode, the modem consumes 100 times less power than competitive products while still being able to be reactivated by an external signal.

Thanks to its targeted design, the Cloud Link 4G Modem requires less power to operate than any other cellular modem available today. It is designed to operate in battery powered applications.

The Cloud Link 4G Modem is CSA, Class I Div 2 approved making it a perfect solution for gas measurement applications where safety is always a concern.

This modem can be configured using the same MasterLink software that is used to configure other Honeywell Mercury® electronic volume correctors and data loggers.

No additional software is required. In addition, MasterLink is now available as an App that can be installed on IOS and Android devices.

Easy to retrofit. The Cloud Link 4G Modem can be easily retrofitted in MiWireless enclosures.

A dedicated kit has been designed to support a smooth transition from 2G/3G to 4G networks.
Features
  • 4G/LTE Transparent Serial Modem
  • Operates with Major Carriers in North America: Certified with At&T, T-Mobile, Verizon, Rogers
  • Falls Back to Umts/Hspa and Gsm/Gprs
  • RS232/485 Interface
  • 1 Digital Input
  • For 2G/3G to 4G Migrations, the Cloud Link 4G Modem is Easy to Retrofit in Miwireless Assemblies
  • Csa C/US Class-I, Div-2
  • Internal Modem Power Control
  • Bluetooth Low Energy Interface can be Used for Wireless Configuration
  • Configured Through Masterlink Programming Software and App
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Wireless Specifications

  • Bluetooth Low Energy: v.4.0 (2402-2480 MHz)
  • LTE: Five Band, 700 (Bd13)/700 (Bd17)/850 (Bd5)/AWS (Bd4)/1900 MHz (Bd2)
  • UMTS/HSPA+: Triple Band, 850 (BdV)/AWS (BdIV)/1900 MHz (BdII)
  • GSM/GPRS/EDGE: Quad Band, 850/900/1800/1900 MHz

Environmental Conditions

  • Temperature: -25° to +65° C
  • Humidity: 0-95% RH, Non-condensing

Battery Connector

  • 3.9 Vdc Max., 2 A Peak
  • 3.4 Vdc Minimum, 3.6 Vdc Nominal

External Power

  • 4.8 Vdc Min.
  • 30 Vdc Max., 2 A Peak

Warranty

  • 4-Year Standard

Input/Outputs/Interfaces

  • RS-232/485
  • CMOS Serial Port: Expansion Low Power Port
  • Digital Input: Pulse Counter, Alarm Input (Typical Door Tamper Alarm), Call Trigger
  • Magnetic Switch: Wakes the Unit Up by Swiping A Magnet and Forces A Call

Certifications

  • PTCRB
  • Verizon, AT&T, Rogers
  • CSA C/US Class-1, Div-2, Group A, B, C and D
  • FCC

Security

  • SSL/TLS 1.2 Version Security

Dimensions

  • 136 mm x 25 mm x 83.5 mm
  • 5.4 in x 1 in x 3.3 in
