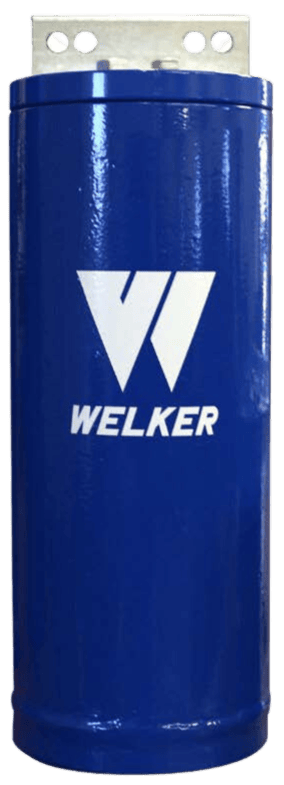

F-4 Filter Dryer

Brand: Welker, Inc
Request Information
The Welker® F-4 Filter Dryers helps to remove aerosols, odorant, and liquid hydrocarbons from gas or instrument air. Add a filter to help reduce line freezing, increase instrument performance, and cut down on maintenance. When the filter cartridge becomes saturated, it can easily be removed and replaced.
Features
Spin Body
  • Spin-on and off filter body simplifies cartridge swaps.
Filtering
  • Filter natural gas to use as an instrument supply source
Cartridge Media
  • Helps remove water, aerosols, liquid hydrocarbons, sulfur, or odorant based on media selected.
The Welker® F-4 Filter Dryers helps to remove aerosols, odorant, and liquid hydrocarbons from gas or instrument air. Add a filter to help reduce line freezing, increase instrument performance, and cut down on maintenance. When the filter cartridge becomes saturated, it can easily be removed and replaced.
Features
Spin Body
  • Spin-on and off filter body simplifies cartridge swaps.
Filtering
  • Filter natural gas to use as an instrument supply source
Cartridge Media
  • Helps remove water, aerosols, liquid hydrocarbons, sulfur, or odorant based on media selected.
Close
Close

Specifications

Brand

Materials of Construction

  • Buna
  • PTFE
  • Carbon Steel

Seal Material

  • Buna

Inlet/Outlet Connection

  • 1/4” FNPT

Filtration

  • Up to 4 micron

Flow Rate

  • Up to 50 scfm

Maximum Temperature

  • 200° F

Operating Pressure

  • 1,500 psig MAOP @ -20° F to 120° F

Size

  • 4.5" x 13"

Weight

  • 24 lb
