s.95 NPT 1/4" - 2" Spring Return Valve

Brand: RuB
CSA CSA

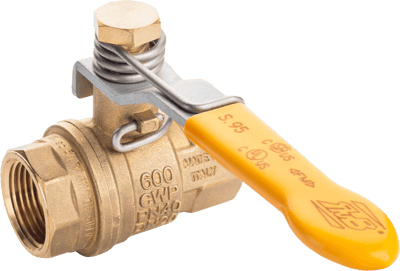

The RuB s.95 spring return brass ball valve, is a durable and reliable choice for use in many industrial and commercial valve applications. The spring return is the best solution for service stations, trucks, public areas, gardens. The same feature is also useful in industrial applications, where a valve must not be left open unattended.

The valve can be opened normally by rotating the handle 90° and when the user releases the handle, the valve shuts off automatically.

Available for order in 1/4” – 2” sizes, the s.95 is designed to work under a 600 PSI and 250 PSI non-shock working pressure for LP-Gas. The s.95 features several key material and design choices which promote a long and reliable service life:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Blowout-proof nickel plated brass stem
  • Robust spring ensures auto shutt-off with max pressure in valve
  • Geomet® carbon steel handle with thick PVC dip coating
  • Pure PTFE self-lubricating seats with flexible-lip design
With a full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada)
  • Meeting WW-V-35C Federal U.S. Specification (United States)
Features
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stress at stem
  • Chrome plated brass ball for longer life
The RuB s.95 spring return brass ball valve, is a durable and reliable choice for use in many industrial and commercial valve applications. The spring return is the best solution for service stations, trucks, public areas, gardens. The same feature is also useful in industrial applications, where a valve must not be left open unattended.

The valve can be opened normally by rotating the handle 90° and when the user releases the handle, the valve shuts off automatically.

Available for order in 1/4” – 2” sizes, the s.95 is designed to work under a 600 PSI and 250 PSI non-shock working pressure for LP-Gas. The s.95 features several key material and design choices which promote a long and reliable service life:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Blowout-proof nickel plated brass stem
  • Robust spring ensures auto shutt-off with max pressure in valve
  • Geomet® carbon steel handle with thick PVC dip coating
  • Pure PTFE self-lubricating seats with flexible-lip design
With a full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada)
  • Meeting WW-V-35C Federal U.S. Specification (United States)
Features
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stress at stem
  • Chrome plated brass ball for longer life
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Quality

  • 24h 100 % seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stress at stem
  • Chrome plated brass ball for longer life

Body

  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 specifications

Stem

  • Blowout-proof nickel plated brass stem
  • Maintenance- free, double FPM O-rings at the stem for maximum safety

Sealing

  • Pure PTFE self-lubricating seats with flexible-lip design

Threads

  • NPT taper ANSI B.1.20.1 female by female threads

Flow

  • Full port to DIN 3357 for maximum flow

Handle

  • Robust spring ensures auto shutt-off with max pressure in valve
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load

Working pressure & temperature

  • 600 PSI (40 bar) non-shock cold working pressure
  • 250 PSI (17 bar) non-shock working pressure for LP-Gas
  • -40° to +350° F (-40° to +170° C)
  • WARNING: freezing of the fluid in the installation may severely damage the valve

Options

  • Stainless steel handle (1.4016 / AISI 430)

Upon request

  • Stainless steel ball (1.4401 / AISI 316)
  • Custom design

Approvals

  • CSA - Canadian Standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada): - Guide YSDT: LP-Gas shut-off valve - Guide YRBX: Flammable liquid shut-off valve - Guide YRPV: Gas shut-off valve for use with natural and manufactured gases - Guide MHKZ: No. 6 oil at 250° F
  • Meeting WW-V-35C Federal U.S. Specification (United States)
  • NOTE: approvals apply to specific configurations/sizes only.
