Pete’s Plug® Gauge Adapters

Brand: Peterson Equipment

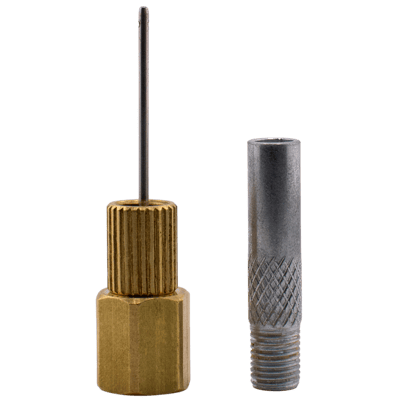

Pete’s Plug® gauge adapters come in brass or stainless steel 1/4" NPTF.

The pressure gauge adapter has a probe constructed of 304 stainless steel. The probe is 0.156” in diameter and extends 2” on the standard adapter and 3 1/2” on the extra long adapter.

Model #510-S Gauge Adapter is a shorter version of the Model 510 that works well when depth clearance is a concern. They are commonly used with Fisher or Belgas 627 regulators when a Pete’s Plug is in the valve body.

Also, the 1/8” diameter probe operates in any Pete’s Plug® besides #12500 , #12510 and XL length Pete’s Plugs®. Please note that the #500XL gauge adapter will operate any of the Pete’s Plugs® with the exclusion of the #2510 and #12510. The #510 and #510S is 1/16” and is intended for use with the 1/8” (#12500 and #12510) only.*

*Please note #12500 and #12510 are intended for pressure readings, not thermometer readings. Please see pairing chart for product compatibility.
Pete’s Plug® gauge adapters come in brass or stainless steel 1/4" NPTF.

The pressure gauge adapter has a probe constructed of 304 stainless steel. The probe is 0.156” in diameter and extends 2” on the standard adapter and 3 1/2” on the extra long adapter.

Model #510-S Gauge Adapter is a shorter version of the Model 510 that works well when depth clearance is a concern. They are commonly used with Fisher or Belgas 627 regulators when a Pete’s Plug is in the valve body.

Also, the 1/8” diameter probe operates in any Pete’s Plug® besides #12500 , #12510 and XL length Pete’s Plugs®. Please note that the #500XL gauge adapter will operate any of the Pete’s Plugs® with the exclusion of the #2510 and #12510. The #510 and #510S is 1/16” and is intended for use with the 1/8” (#12500 and #12510) only.*

*Please note #12500 and #12510 are intended for pressure readings, not thermometer readings. Please see pairing chart for product compatibility.
Close
Close

Specifications

Brand

Thread

  • 1/4" NPT
  • 1/4” BSP

Probe Size

  • 1/8"
  • 1/16"
