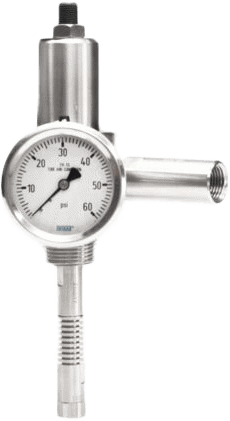

IRD Probe Regulator

Brand: Welker, Inc
The Welker Original IRD Probe Regulator delivers a continuous supply of representative samples to an analyzer at the appropriate pressure for real-time natural gas analysis of high-volume lines.

For real-time natural gas analysis of high-volume lines, you need a sample probe that can deliver a continuous supply of representative samples to your analyzer at the appropriate pressure. The Welker Original IRD Probe Regulator mounts directly to a hot tap or mating flange on your depressurized pipeline and has a fixed insertion length to extract the most representative sample from the center one-third of the source stream.
Features
  • Fixed insertion length
  • Pressure-regulating probe tip with thermal fins
  • Low internal volume
  • Multiple pressure control ranges
  • Welker Spring Range Kit (IRD-4SS option)
Benefits
  • Collect representative samples from the center one-third of the pipeline
  • Regulation point in the pipeline
  • Mitigate the Joule-Thomson effect and prevent sample condensation
  • Reduced lag time
  • Real-time sample analysis
  • Adaptable to pressure requirements of downstream analyzer
  • Easily swap springs to change the output pressure range for a new application or downstream device (IRD-4SS option)
The Welker Original IRD Probe Regulator delivers a continuous supply of representative samples to an analyzer at the appropriate pressure for real-time natural gas analysis of high-volume lines.

For real-time natural gas analysis of high-volume lines, you need a sample probe that can deliver a continuous supply of representative samples to your analyzer at the appropriate pressure. The Welker Original IRD Probe Regulator mounts directly to a hot tap or mating flange on your depressurized pipeline and has a fixed insertion length to extract the most representative sample from the center one-third of the source stream.
Features
  • Fixed insertion length
  • Pressure-regulating probe tip with thermal fins
  • Low internal volume
  • Multiple pressure control ranges
  • Welker Spring Range Kit (IRD-4SS option)
Benefits
  • Collect representative samples from the center one-third of the pipeline
  • Regulation point in the pipeline
  • Mitigate the Joule-Thomson effect and prevent sample condensation
  • Reduced lag time
  • Real-time sample analysis
  • Adaptable to pressure requirements of downstream analyzer
  • Easily swap springs to change the output pressure range for a new application or downstream device (IRD-4SS option)

Specifications

Materials of Construction

  • 316/316L Stainless Steel
  • Kel-F®
  • Viton

Connections

  • Outlet: ¼” FNPT
  • Pipeline: ½”, ¾”, 1” or 2” MNPT

Output Range

  • IRD-1: 75-200 psig
  • IRD-2: 100-500 psig
  • IRD-4: 0-25 psig , 0-50 psig , 20-100 psig , or 75-200 psig
  • IRD-6: 250-1500 psig (17-103 barg)

Insertion Length

  • 2.2” Standard for 2” and 3” Pipe
  • 3.6” Standard for 4” and 6” Pipe
  • 5.9” Standard for 8”, 10”, and 12” Pipe

Flow Coefficient

  • IRD-1, IRD-2, and IRD-6: 0.092
  • IRD-4: 0.138

Operation

  • IRD-1 and IRD-4: Diaphragm-Operated
  • IRD-1, IRD-2, and IRD-6: Piston-Operated

Operating Pressure

  • IRD-1, IRD-2, and IRD-6: 5000 psig @ -20° F to 100° F
  • IRD-4: 3600 psig @ -20° F to 100° F
