CloudLink 5G Modem

Brand: Honeywell
Request Information
CSA CSA

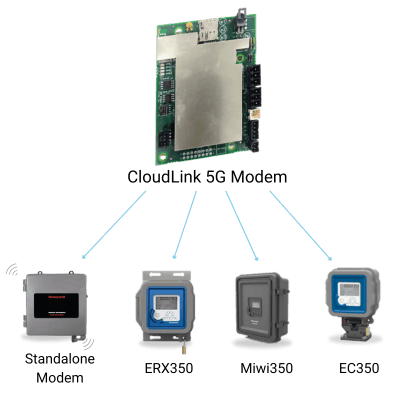

The Honeywell CloudLink 5G Modem is a multi-band CAT M1 cellular device intended to process serial data from any source, including a Honeywell/ Mercury Instruments Product Lines. Designed for low-power applications with a temp rating of -40 to 158 F, the CloudLink 5G Modem is a fullfeatured, easy-to-configure and install cellular modem. In sleep mode, the modem consumes less power than any modem available, allowing you to work longer on lithium batteries or rechargeable solar power applications. Ultra-low power consumption is made possible by efficiently using the power-saving mode (PSM). See your Honeywell/Mercury Channel Partner to understand the battery life of your specific applications. This modem is configurable using the same MasterLink software that configures other Honeywell/Mercury Products. The CloudLink 5G Modem is easily retrofitted and designed to be directly mounted onto the main board of 350 series products.

Features
  • For 4G and 5G applications
  • Class 1 Div 1
  • Class 1 Div 2
  • CSA certified
  • Ultra-low power Consumption
  • Transparent Modem
  • Configured through MasterLink

The Honeywell CloudLink 5G Modem is a multi-band CAT M1 cellular device intended to process serial data from any source, including a Honeywell/ Mercury Instruments Product Lines. Designed for low-power applications with a temp rating of -40 to 158 F, the CloudLink 5G Modem is a fullfeatured, easy-to-configure and install cellular modem. In sleep mode, the modem consumes less power than any modem available, allowing you to work longer on lithium batteries or rechargeable solar power applications. Ultra-low power consumption is made possible by efficiently using the power-saving mode (PSM). See your Honeywell/Mercury Channel Partner to understand the battery life of your specific applications. This modem is configurable using the same MasterLink software that configures other Honeywell/Mercury Products. The CloudLink 5G Modem is easily retrofitted and designed to be directly mounted onto the main board of 350 series products.

Features
  • For 4G and 5G applications
  • Class 1 Div 1
  • Class 1 Div 2
  • CSA certified
  • Ultra-low power Consumption
  • Transparent Modem
  • Configured through MasterLink
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Wireless Specifications

  • LTE Bands Supported
  • CAT M11: B1,B2,B3,B4,B5,B8,B12,B13,B14,B17,B18,B19,B20,B25,B26,B28,B66
  • NB-IoT (Cat-NB1/NB2)2: B1,B2,B3,B4,B5,B8,B12,B13,B17,B19,B20,B25,B26,B28,B66

Environmental Conditions

  • Temperature: -40°C to +70°C (-40°F to +158°F)
  • Humidity: 0%-95% RH, non-condensing

Power Supply Options

  • Battery connector: 7.2Vdc nominal, 6Vdc min / 7.8Vdc maximum , 0.8A peak
  • External power supply: 5Vdc min. / 15Vdc max. , 0.8A peak, 0.23A average

Input/Outputs/Interfaces

  • Supports eSIM and uSIM - uSIM size is 4FF
  • Separate tamper detection input from digital input
  • Dedicated Configuration Port

Dimensions

  • 88.6 mm x 68 mm x 1.6 mm
  • 3.488 in x 2.677 in x 0.062 in

Certifications

  • Verizon
  • AT&T
  • PTCRB
  • T-Mobile
  • Additional Carrier Certifications Pending
  • NAMODEL Certification with CSA: Ex ia IIB Ga, Class I Zone 0, AEx ia IIB Ga, Class I Division 1, Group C, D - Ex ec [ic Gc] IIB Gc, Class I Zone 2, AEx ec [ic Gc] IIB Gc, Class I Division 2 Group C, D with non-incendive field wiring connections
  • IECEx Zone 0 (Ex ia IIB Ga)
  • IECEx Zone 2 (Ex ec [ic Gc] IIB Gc)
  • FCC
