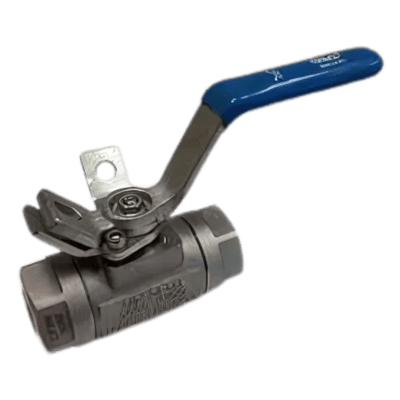

Model TW301 Floating Ball Valve 1/2" & 1" (3000 WOG)

Brand: GWC USA

GWC valves are in stock and ready to ship.

The GWC Italia model TW301 floating ball valve features a three-piece threaded body, free floating ball, fire-safe design, blow-out proof stem, forging design, locking device and mounting pad.

Features
  • End to End: GWC Standard End
  • Threads: ASME B1.20.1 NPT
  • Socket Weld Ends: ASME
  • Rating: 3000 WOG

The GWC Italia model TW301 floating ball valve features a three-piece threaded body, free floating ball, fire-safe design, blow-out proof stem, forging design, locking device and mounting pad.

Features
  • End to End: GWC Standard End
  • Threads: ASME B1.20.1 NPT
  • Socket Weld Ends: ASME
  • Rating: 3000 WOG
Close

Specifications

Brand

Pressure Rating

  • 3000 WOG

Certifications

  • API 607 FIRE SAFE
  • NACE
  • ANTI-STATIC
  • API 608 DESIGN
  • API 598 TESTED AND INSPECTED

Materials of Construction

  • ASTM A350 GR. LF2 BODY
  • 316SS BALL AND STEM

Sealing Materials

  • FKM GLT O-RING
  • DELRIN SEATS(-45c)
  • GRAPHITE STEM PACKING
