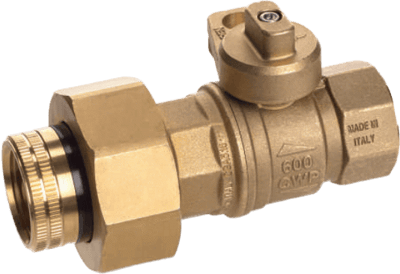

s.8043 NPT Dielectric 3/4” - 1-1/4” Hot Forged Brass Ball Meter Valve With Tamper Proof Lockwing

Brand: RuB Inc
CSA CSA
The RuB s.8043 dielectric tamper proof brass ball valve is a durable and reliable choice for use in natural gas service, specifically designed to be paired with a gas meter, as well as many industrial and commercial valve applications.


Available for order in ¾” – 1-1/4” sizes, the s.8043 is designed to work under 600 PSI non-shock cold working pressure and a 250 PSI non-shock working pressure for LP-Gas. The s.8043 features several key material and design choices which promote a long and reliable service life:

  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Blowout-proof unplated brass stem
  • Hot forged brass tamper proof lockwing
  • Pure PTFE self-lubricating seats with flexible-lip design

With a full port design, the valve can easily be installed in various systems with ease.



Approved by, or in compliance with:

  • Canadian Standards Association (United States, Canada)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada)
Features
  • 24 hour 100% seal test guaranteed
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Cover clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem
The RuB s.8043 dielectric tamper proof brass ball valve is a durable and reliable choice for use in natural gas service, specifically designed to be paired with a gas meter, as well as many industrial and commercial valve applications.


Available for order in ¾” – 1-1/4” sizes, the s.8043 is designed to work under 600 PSI non-shock cold working pressure and a 250 PSI non-shock working pressure for LP-Gas. The s.8043 features several key material and design choices which promote a long and reliable service life:

  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Blowout-proof unplated brass stem
  • Hot forged brass tamper proof lockwing
  • Pure PTFE self-lubricating seats with flexible-lip design

With a full port design, the valve can easily be installed in various systems with ease.



Approved by, or in compliance with:

  • Canadian Standards Association (United States, Canada)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada)
Features
  • 24 hour 100% seal test guaranteed
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Cover clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem

Specifications

Brand

Certifications & Approvals

CSA CSA

Rated Size

  • 3/4” to 1-1/4”

Quality

  • 24h 100% seal test guaranteed
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Cover clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem

Body

  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Special design to combine newest technologies in valve and traditional gas-cock requirements
  • Finest brass according to EN 12165 and EN 12164 specifications

Stem

  • Blowout-proof unplated brass stem
  • Maintenance-free, double FPM O-rings at the stem for maximum safety

Sealing

  • Pure PTFE self-lubricating seats with flexible-lip design

Threads

  • NPT taper ANSI B.1.20.1 female by dielectric union female threads

Approvals

  • Canadian standards Association (United States, Canada)
  • GOST-R (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States, Canada): – Guide YSDT: LP-Gas shut-off valve – Guide YRBX: Flammable liquid shut-off valve – Guide YRPV: Gas shut-off valve for use with natural and manufactured gases – Guide MHKZ: No. 6 oil at 250°F
  • NOTE: approvals apply to specific configurations/sizes only.

Flow

  • Full port to DIN 3357 for maximum flow

Handle

  • Hot forged brass tamper proof lockwing

Working Pressure & Temperature

  • 600 PSI (40 bar) non-shock cold working pressure
  • 250 PSI (17 bar) non-shock working pressure for LP-Gas
  • -40°F to +350°F (-40°C to +170°C)
  • WARNING: freezing of the fluid in the installation may severely damage the valve

Options

  • Painted gray
  • Dielectric union end long or short pattern
