Description
Elster® Rotary Gas Meters offer robust and accurate measurement instruments for gas distribution companies.
Based on proven technology and bundled with advanced features to meet tomorrow’s requirement, Elster gas meters provide exceptional performance and reliability with features like high maximum operating pressure, low pressure drop, and wide rangeability.
Elster Rotary gas meters are characterized by compact dimensions and extended measuring range. They ensure high accuracy, even under low or irregular gas flow conditions.
The rotary meters combine tried and tested product features of the RPM and IRM rotary meter product lines with new advanced features. The new rotary meter offers a set of features that meets virtually all market applications in one simple design.
The rotary gas meters utilize the rotary type positive displacement principle of operation which makes volumetric measurements by displacing finite volumes of gas. The positive displacement occurs within a cavity formed between the meter’s internal housing and its rotating impellers. The counter-rotating impellers turn as a result of pressure drop across the meter’s inlet and outlet created as downstream gas is consumed. The rotating impellers separate the flowing gas into small, finite, volumes and are counted using a mechanical index.
Honeywell Elster has combined tried and tested product features of their RPM and IRM rotary meter product lines with new developments into a single product. The new Honeywell ElsterRotary Gas Meter offers a feature set that meets virtually all market applications in one simple design.
Rotary-All-By-One. simply, all-in-one!

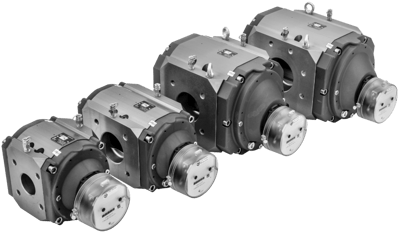

Features- 4 meter sizes
- 3,500 to 14,000 acfh Maximum Capacity
- 2", 3" and 4" ANSI 125/150 flanged connections
- High rangeability across the flow range
- Low pressure drop
- Differential pressure taps on inlet and outlet with pressure test ports
- Non-lubricated and non-resettable index
- End view, rotatable index
- Heavy duty, compact design
- High impact-resistant, ultraviolet stabilized index cover
- Anodized extruded aluminum body and impellers
- Anodized forged aluminum case covers
- Permanently lubricated bearings
- 10 ft³ output on all meter sizes
- Options
- Pulse outputs
- Thermowell
- Index masking
- Gasket strainers
- Flange bolts and gaskets
- AMR mounting
- Differential pressure gauge kit
- Instrument Drive
- Bracked or ID-mounted P&T correction (EC 350)
Configure
Specifications
Specifications
Brand
Certifications & Approvals
- ATEX
- PED
Voltage
- 1 -24 V
Current
- 2 to 76 mA
Power
- 1.1 mW
Resistance
- Static Contact: 200 mΩ
- Insulation: 10⁹ Ω
Breakdown Voltage
- 100 Vdc
Switch Time
- 0.5 millisecond Typical (Including Bounce)
Release Time
- 0.1 millisecond
Case Material
- Extruded Aluminum, Hard-Coat Anodized
Materials of Construction
- Front Bearing Plate: Aluminum, Hard-Coat Anodized
- Oil Slinger: Steel
- Pressure Test Ports: Brass Housing
- Gear Box: Polyoxymethylene
- Pressure Plate: Stainless Steel
- Index Drive: Magnet
- Impellers: Extruded Aluminum, Hard-Coat Anodized
- Back/Front Case Cover: Forged Aluminum, Hard-Coat Anodized
- Back/Front Bearing: Stainless Steel, Lubricated, Shielded
- Timing Gears: Carbon Steel
- Sight Glasses: Aluminum Housing
- Index Base: High Performance Polyamide (Nylon)
- Index Cover: Polycarbonate, UV Resistant
- Index Masking Plate: Aluminum
- Index: Polycarbonate
Temperature Range
- -40° to 70° C (-40° to 140° F)
Environmental Protection
- IP67
MAOP
- 290 psig
Thermowell
- 1/4” NPT with Gland, 316 Stainless Steel, 0.25” Bore
Index Masking
- 4 x 1,000 CF
- 5 x 100 CF (Standard)
- 6 x 10 CF
- 6 x 100 CF
- 5 x 1,000 CF
AMR Mounting
- Horizontal or Vertical Flow
Gasket Strainer Size
- 2” ANSI 125/150
- 3” ANSI 125/150
- 4” ANSI 125/150
Gasket Strainer Type
- Ring
- Full Face
Mesh
- 20, 40, 80
