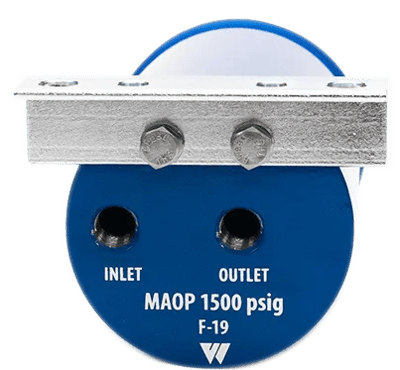

F-19 Filter Dryer

Brand: Welker, Inc
The Welker F-19 Filter Dryer is designed to filter and dry natural gas to prepare it for use as an instrument supply.

As gas flows through the F-19, water, aerosols, odorant, and liquid hydrocarbons are removed by the filter media, thus cleaning and drying the gas for use by downstream pneumatic controllers or other instruments.
Features
  • Spin on filter body
  • Mounting Bracket
  • Filter cartridge media to remove water, liquid, hydrocarbons, mercaptan, and sulfur
Benefits
  • Simplified cartridge change outs
  • Clean, dry, supply gas
The Welker F-19 Filter Dryer is designed to filter and dry natural gas to prepare it for use as an instrument supply.

As gas flows through the F-19, water, aerosols, odorant, and liquid hydrocarbons are removed by the filter media, thus cleaning and drying the gas for use by downstream pneumatic controllers or other instruments.
Features
  • Spin on filter body
  • Mounting Bracket
  • Filter cartridge media to remove water, liquid, hydrocarbons, mercaptan, and sulfur
Benefits
  • Simplified cartridge change outs
  • Clean, dry, supply gas

Specifications

Materials of Construction

  • Carbon Steel
  • Buna
  • PTFE

Seal Material

  • Buna

Inlet/Outlet Connection

  • 1/4” FNPT

Drain Valve

  • 1/4” FNPT

Flow Rate

  • Up to 50 scfm

Maximum Temperature

  • 200° F

Operating Pressure

  • 1,500 psig MAOP @ -20° F to 120° F

Weight

  • 8 lb
