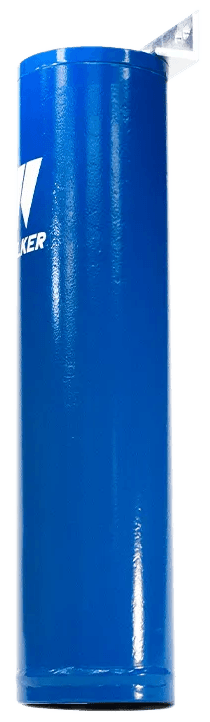

F-5 Filter Dryer

Brand: Welker, Inc
Request Information
The Welker F-5 Filter Dryer helps to remove aerosols, odorant, and liquid hydrocarbons from gas or instrument air. Add a filter to help reduce line freezing, increase instrument performance, and cut down on maintenance.
Features
  • Spin on filter body
  • Mounting Bracket
  • Filter cartridge media to remove water, liquid, hydrocarbons, mercaptan, and sulfur
Benefits
  • Simplified cartridge change outs
  • Clean, dry, supply gas
The Welker F-5 Filter Dryer helps to remove aerosols, odorant, and liquid hydrocarbons from gas or instrument air. Add a filter to help reduce line freezing, increase instrument performance, and cut down on maintenance.
Features
  • Spin on filter body
  • Mounting Bracket
  • Filter cartridge media to remove water, liquid, hydrocarbons, mercaptan, and sulfur
Benefits
  • Simplified cartridge change outs
  • Clean, dry, supply gas
Close
Close

Specifications

Brand

Materials of Construction

  • Carbon Steel
  • Buna
  • PTFE

Seal Material

  • Buna

Inlet/Outlet Connection

  • 1/4” FNPT

Filtration

  • Up to 4 micron

Flow Rate

  • Up to 50 scfm

Maximum Temperature

  • 200° F

Operating Pressure

  • 1,500 psig MAOP @ -20° F to 120° F

Weight

  • 38 lb
