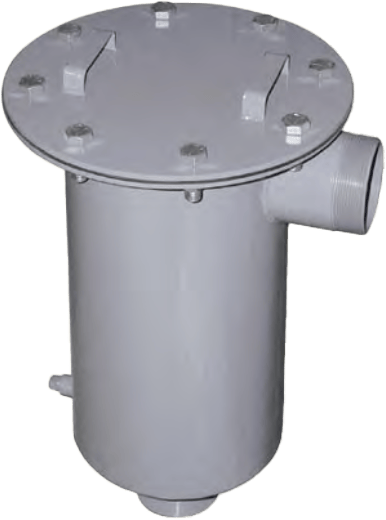

Series H20/H22 Side Exhaust Mist Eliminating Filter

Brand: Shawndra Products, Inc
Request Information
Classic Two Stage Microglass Exhaust Elements are time-honored performers.

However, their non-pleated cylindrical construction can generate a higher pressure drop (typ. ΔP 2 psi clean) and requires a larger filter housing to accept the physically large exhaust element.

Newer High Flow Low ΔP Pleated Microglass Elements have permitted a less expensive more compact housing design together with a proven much lower pressure drop.

Their extended filter area effectively retains both particulates and mist drop lets with removal performance to 0.3µ The extended filter area provides superior dirt and particulate retention capacities.

Oil & Gas Resistant Ends with double track seals out perform metal end style elements.
Features
  • Connection Sizes 1-1/4" to 24"
  • All Steel Construction
  • Options: ΔP Taps, Angle legs, ΔP gauge
  • Rugged Design - 15 psid @ -20 to 200°F (non-code)
  • 304 Stainless Steel Throat Safety Cages Standard
Classic Two Stage Microglass Exhaust Elements are time-honored performers.

However, their non-pleated cylindrical construction can generate a higher pressure drop (typ. ΔP 2 psi clean) and requires a larger filter housing to accept the physically large exhaust element.

Newer High Flow Low ΔP Pleated Microglass Elements have permitted a less expensive more compact housing design together with a proven much lower pressure drop.

Their extended filter area effectively retains both particulates and mist drop lets with removal performance to 0.3µ The extended filter area provides superior dirt and particulate retention capacities.

Oil & Gas Resistant Ends with double track seals out perform metal end style elements.
Features
  • Connection Sizes 1-1/4" to 24"
  • All Steel Construction
  • Options: ΔP Taps, Angle legs, ΔP gauge
  • Rugged Design - 15 psid @ -20 to 200°F (non-code)
  • 304 Stainless Steel Throat Safety Cages Standard
Close

Specifications

Brand

Enclosure / Body Material

  • Enameled Steel
  • 304 Stainless Steel

Connection Size

  • 1.25” to 24”

Connection Type

  • Flat Face Flange
  • Male NPT

Safety Cage Material

  • 304 Stainless Steel

Filter Element

  • Classic Filter Element
  • 0.3 μ High Flow Pleated Element
  • ≤ 0.3 μ High Performance Pleated Element
