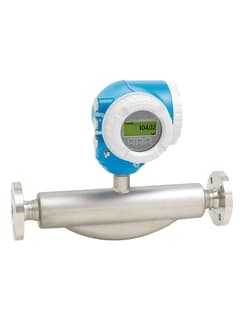

Proline Promass F 300 Coriolis flowmeter
CSA
Measurement Canada
Hydrogen Compatible Description
Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
Measuring principle operates independently of physical fluid properties such as viscosity or density
Highest measurement performance for liquids and gases under varying, demanding process conditions.
Device properties
Mass flow: measurement error ±0.05 % (PremiumCal)
Medium temperature: -196 to 350 °C (-320 to 662 °F)
Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Highest process safety – immune to fluctuating and harsh environments
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in-/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology
Specifications
Specifications
Brand
Certifications & Approvals
CSA Measurement Canada Hydrogen Compatibility %
Hydrogen Compatible up to 100%
Hydrogen Compatible up to 30%
Hydrogen Compatible up to 20% Sensor Features
- Highest process safety – immune to fluctuating and harsh environments
- Fewer process measuring points – multivariable measurement (flow, density, temperature)
- Space‐saving installation – no in-/outlet run needs
- Mass flow: measurement error ±0.05 % (PremiumCal)
- Medium temperature: –196 to 350 °C (–320 to 662 °F).
- Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
Transmitter features
- Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
- Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology
- Compact dual-compartment housing with up to 3 I/Os
- Backlit display with touch control and WLAN access. Remote display available
Nominal diameter range
- DN 8 to 250 (⅜ to 10")
Wetted materials
- Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
- Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
Measured variables
- Mass flow,
- Density
- Temperature
- Volume flow
- Corrected volume flow
- Reference density
- Concentration
Max. measurement error
- Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
- Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.25 %
- Density (liquid): ±0.0005 g/cm³
Measuring range
- 0 to 2 200 000 kg/h (0 to 80 840 lb/min)
Max. process pressure
- PN 100, Class 600, 63K
Medium temperature range
- Standard: –50 to +150 °C (–58 to +302 °F)
- Option: –50 to +240 °C (–58 to +464 °F)
- High temperature option: –50 to +350 °C (–58 to +662 °F)
- Option: –196 to +150 °C (–320 to +302 °F)
Ambient temperature range
- Standard: –40 to +60 °C (–40 to +140 °F)
- Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material
- Standard: 1.4301 (304)
- Option: 1.4404 (316/316L)
Transmitter housing material
- AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Degree of protection
- Compact version: IP66/67, type 4X enclosure. External WLAN antenna: IP67 IP69
Display/Operation
- 4-line backlit display with touch control (operation from outside)
- Remote display available
- Configuration via local display and operating tools possible
Outputs
- 3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive) Relay output
Inputs
- Status input 4-20 mA input
Digital communication
- HART
- PROFIBUS DP
- PROFIBUS PA
- FOUNDATION Fieldbus
- Modbus RS485
- PROFINET
- PROFINET over Ethernet-APL
- Ethernet/IP, OPC-UA
Power supply
- DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals
- ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product safety
- CE, C-tick, EAC marking
Metrological approvals and certificates
- Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) MI-005 (Liquids other than water, Hydrocarbons, LPG, cryogenic liquids) NTEP (Liquids other than water, LPG, cryogenic liquids) MC (Liquids other than water, gases, cryogenic liquids) MI-002, PTB
Pressure approvals and certificates
- PED, CRN, AD 2000
Material certificates
- 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
