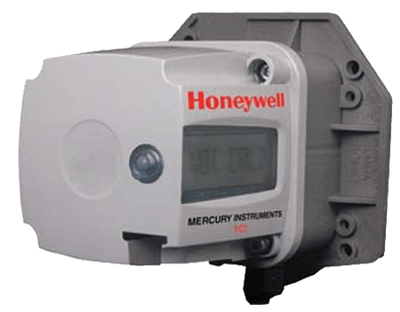

TCI Temperature Compensating Index

Brand: Honeywell Process Solutions
CSA CSA Measurement Canada Measurement Canada
A rugged, reliable & accurate electronic temperature compensating index that provides three pulse outputs channels for AMR connections - standard.

An advanced, yet simple to use, electronic temperature compensating index available for natural gas rotary meters, the Mercury Instruments TCI™.

This value-priced index is an ideal replacement for mechanical TC indexes.

Since volume pulse output channels are standard on the TCI, during assembly, AMR modules of your choice can also be pre-installed to reduce installation costs and improve reliability.
Features
  • 20-year nominal battery life and calibration
  • Two-minute proving with a Model 5 and Honeywell TC Tester
  • Submersible; total accuracy = ± 0.25%
  • Redundant input from any rotary meter and adapter plates for all popular meters
  • Back-up memory module containing last 90 days of time stamped data
  • Two insulated arm pulse output channel & integrated infrared communications port
  • UV-resistant polycarbonate enclosures
  • Highly responsive temperature sensor; ambient temperature: -40° to 160° F (-40° to 71° C)
  • No new software required
  • User-configurable Fixed Pressure Factor
  • CSA Class 1, Div 1 & 2, Group D Certification
A rugged, reliable & accurate electronic temperature compensating index that provides three pulse outputs channels for AMR connections - standard.

An advanced, yet simple to use, electronic temperature compensating index available for natural gas rotary meters, the Mercury Instruments TCI™.

This value-priced index is an ideal replacement for mechanical TC indexes.

Since volume pulse output channels are standard on the TCI, during assembly, AMR modules of your choice can also be pre-installed to reduce installation costs and improve reliability.
Features
  • 20-year nominal battery life and calibration
  • Two-minute proving with a Model 5 and Honeywell TC Tester
  • Submersible; total accuracy = ± 0.25%
  • Redundant input from any rotary meter and adapter plates for all popular meters
  • Back-up memory module containing last 90 days of time stamped data
  • Two insulated arm pulse output channel & integrated infrared communications port
  • UV-resistant polycarbonate enclosures
  • Highly responsive temperature sensor; ambient temperature: -40° to 160° F (-40° to 71° C)
  • No new software required
  • User-configurable Fixed Pressure Factor
  • CSA Class 1, Div 1 & 2, Group D Certification
Close

Specifications

Brand

Certifications & Approvals

CSA CSA Measurement Canada Measurement Canada

Temperature Measurement System

  • Highly Stable, Solid State Temperature Sensor (Thermistor)
  • Range : -40° to 170° F (-40° to 70° C)

Temperature Accuracy

  • -4° to 104° F (-20° to 40° C) ± 0.1 %
  • -40° to 170° F (-40° to 70° C) ± 0.25 %

Computational Accuracy

  • ± 0.3 % of Compensated Volume Reading

Long Term Stability

  • ± 0.5 % Reference to Absolute Temperature

Ambient Temperature

  • -40° to 170° F (-40° to 76.6° C)

Humidity

  • 0 to 100 % Non-Condensing

Ambient Temperature Effects

  • Total: ± 0.1 % of Compensated Volume per 100° F from -40° to 170° F (-40° to 76.6° C)

Certifications & Approvals

  • FCC
  • cCSAus

Enclosure

  • Grey Opaque Polycarbonate with Clear Lexan Window Over LCD

Environmental Protection

  • NEMA 6
  • IP67
Close
