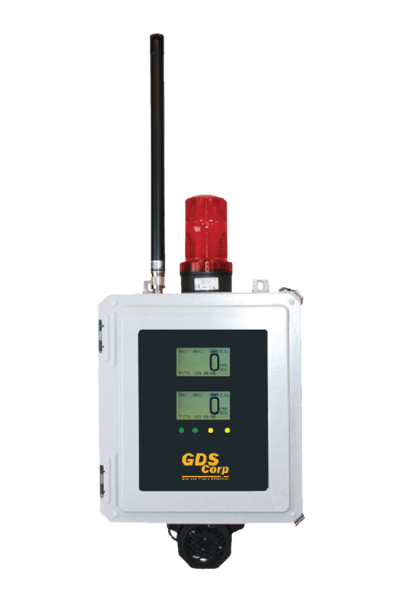

PROTECTOR32-RF Wireless System Hybrid Controller

Brand: GDS
CSA CSA
The GDS Corp Protector32-RFD Wireless System Controller is designed to monitor and alarm on 900 MHz or 2.4 GHz wireless signals from up to 32 GDS Corp GASMAX MX or GASMAX CS wireless gas monitors, GASMAX GX wired gas monitors (when equipped with optional radio module), GDS-58X signal transmitters or GDS-59X switch state transmitters.

In addition, the Protector32-RF includes four local analog inputs for wired detectors (32 channels total).

The Protector32-RF includes four dry-contract alarm relays with user-adjustable alarm settings that may be set to either latching or non-latching operation.

The Protector32-RF controller also includes an RS-485 serial MODBUS output that can allow remote PLCs or DCSs to monitor all 32 input channels in real time.

When configured with an optional AC power supply, the Protector32-RF can supply up to 65 watts of external DC power for connected devices such as strobes and horns.
Features
  • Four dedicated 4-20 mA analog inputs for wired sensors
  • Operates on 12 V to 35 VDC or 110/220 VAC
  • Surge protection on all sensor and power inputs
  • Dual graphical LCDs with LED backlights
  • Four user-programmable 4 A alarm relays with replaceable fuses
  • 900 MHz or 2.4 GHz radios
  • Wet-contact fault relay output
The GDS Corp Protector32-RFD Wireless System Controller is designed to monitor and alarm on 900 MHz or 2.4 GHz wireless signals from up to 32 GDS Corp GASMAX MX or GASMAX CS wireless gas monitors, GASMAX GX wired gas monitors (when equipped with optional radio module), GDS-58X signal transmitters or GDS-59X switch state transmitters.

In addition, the Protector32-RF includes four local analog inputs for wired detectors (32 channels total).

The Protector32-RF includes four dry-contract alarm relays with user-adjustable alarm settings that may be set to either latching or non-latching operation.

The Protector32-RF controller also includes an RS-485 serial MODBUS output that can allow remote PLCs or DCSs to monitor all 32 input channels in real time.

When configured with an optional AC power supply, the Protector32-RF can supply up to 65 watts of external DC power for connected devices such as strobes and horns.
Features
  • Four dedicated 4-20 mA analog inputs for wired sensors
  • Operates on 12 V to 35 VDC or 110/220 VAC
  • Surge protection on all sensor and power inputs
  • Dual graphical LCDs with LED backlights
  • Four user-programmable 4 A alarm relays with replaceable fuses
  • 900 MHz or 2.4 GHz radios
  • Wet-contact fault relay output
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Power Input

  • 12 VDC to 35 VDC input
  • DC current draw 275 mA max with no analog inputs; 3 up to 3 A max with four analog input devices
  • Optional 85 to 264 VAC 75 Watt AC power supply

Protection

  • Power Electromagnetic Interference Filter (RFI)
  • 4-20 mA Input Surge Suppression
  • RS-485 and RS-232 Output Surge Suppression

Display

  • 2x 128x64 high resolution graphical screens
  • System status LEDs

User Interface

  • Five pushbuttons: MENU, ADD, SUB. SCAN/HOLD, RESET

Wireless Input

  • External N-Female RF Connector
  • 32 Channel of Wireless Input
  • 900 MHz: 52 Networks
  • 2.4 GHz: 78 Networks; 255 Channels per network

Analog Output

  • 4 Channel Analog Inputs
  • Industry-standard 4-20 mA current loop with source excitation

Alarm Settings

  • Individual per channel

Relay Output

  • Four dry-contact relays rated for 4 A resistive with replaceable fuses
  • Dedicated wet-contact Fault relay

Digital Output

  • RS-485 Serial slave port

Temperature

  • -40° to +70° C Operating Range

Housing

  • NEMA 4X fiberglass enclosure with clear window (Available in Stainless Steel)
  • Four mounting feet, 6" x 12.25" hole spacing
  • Maximum mounting bolt 5/16" (8 mm) diameter

Dimensions

  • 10" H x 8" W x 6" D (Does not include strobes or horns)
  • 8.2 lb

Cerifications

  • For use in non-hazardous areas only

Hardware Warranty

  • One-year limited warranty
