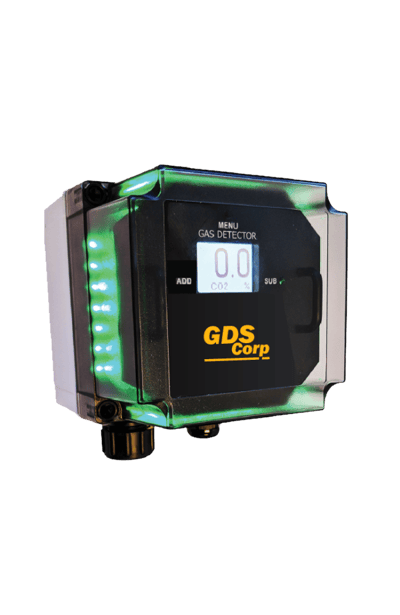

GASMAX NS Single-Channel Compact Wired Gas Monitor

Brand: GDS Corporation
CSA CSA
The GDS Corp GASMAX NS single-channel gas monitor is designed for non-hazardous areas and supports a wide range of sensors for toxic or volatile organic compounds (VOCs).

The monitor is DC powered with an optional AC supply for easy installation and uses magnetic switches for fast setup that does not require opening the enclosure.
Features
Compact Single-Channel Gas Monitor for Non-Hazardous Areas
  • Supports electrochemical, photoionization (PID) or infrared (CO₂) sensors
  • Analog 4-20 mA and serial MODBUS outputs
  • Integrated highly-visible LED alarm indicators
  • Green-only alarm for special applications
  • Integrated piezo buzzer for audible warnings
  • Two dry-contact alarm relays and dedicated wet-contact fault relay
  • Optional 900 MHz or 2.4 GHz radio for interoperability with GDS Corp wireless networks
  • DC Input +12 to +35 VDC
The GDS Corp GASMAX NS single-channel gas monitor is designed for non-hazardous areas and supports a wide range of sensors for toxic or volatile organic compounds (VOCs).

The monitor is DC powered with an optional AC supply for easy installation and uses magnetic switches for fast setup that does not require opening the enclosure.
Features
Compact Single-Channel Gas Monitor for Non-Hazardous Areas
  • Supports electrochemical, photoionization (PID) or infrared (CO₂) sensors
  • Analog 4-20 mA and serial MODBUS outputs
  • Integrated highly-visible LED alarm indicators
  • Green-only alarm for special applications
  • Integrated piezo buzzer for audible warnings
  • Two dry-contact alarm relays and dedicated wet-contact fault relay
  • Optional 900 MHz or 2.4 GHz radio for interoperability with GDS Corp wireless networks
  • DC Input +12 to +35 VDC

Specifications

Certifications & Approvals

CSA CSA

Sensor

  • Electrochemical, infrared or PID

Power

  • +12 - 32 VDC or 110/220 VAC, 2 Watts max

Display

  • 102 x 64 LCD with LED

Interface

  • Magnetic wnnd or pushbuttons

Output

  • 4-20 mA Analog
  • Dedicated Fault Terminal
  • Serial MODBUS interface
  • Piezo Buzzer

Radio

  • Optional Wireless Interface, 900 MHz or 2.4 GHz

Dimensions

  • 5”W x 5”H x 5”D

Enclosure

  • NEMA C1 4, 4X IP66 UL508

Warranty

  • One-year limited warranty
