Welker SSM-1 Spot Sampling Manifold

Part Number: SSM1 Brand: Welker, Inc
Price
Request a Quote
Stock
Contact for Availability

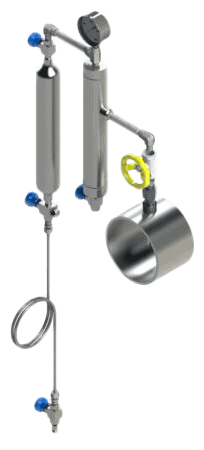

The Welker SSM-1 Spot Sampling Manifold is designed to optimize natural gas spot sampling procedures by reducing liquid carryover and prevent the creation of liquids. Connect a Welker Sample Probe and a Welker Single Cavity Cylinder to the SSM-1 and you’ve got a complete spot sampling system.

Remove Free Liquids

Two styles of SSM-1 offer different levels of liquid separation upstream of the sample cylinder for a more representative spot sample. For free liquid removal, the standard SSM-1 with a Welker DP-15 Drip Pot is the answer. Acting as a sample line separator, the DP-15 collects free liquids from gaseous flow. Where created liquids are a primary concern, swap the DP-15 for a Welker Fluid Sentinel. The Fluid Sentinel combines a liquid separator and a sight glass to prevent free liquids from reaching the sample cylinder while allowing technicians to monitor the sample stream for present or created liquids.

Offset The Joule-Thomson Effect

Pressure and temperature changes that occur during repeated fill and empty cycles have the potential to distort your sample. The SSM-1’s pigtail keeps your sample representative by distancing the flow restriction from the sample cylinder. Pressure reduction during an empty cycle occurs at the pigtail’s valve, preventing the Joule-Thomson effect from cooling the cylinder and potentially condensing the sampled gas. When using an SSM-1 with Welker Fluid Sentinel, the technician can visually monitor the sample stream for created liquids and modify the spot sampling technique as necessary.
Features
  • Extension tube with valve
  • Welker DP-15 Drip Pot
  • Welker Fluid Sentinel liquid separator and sight glass (optional)
Benefits
  • Removes the flow restriction from the sample cylinder to offset the Joule-Thomson effect
  • Free liquid removal
  • Prevent free and created liquids from reaching the sample cylinder
  • Visually monitor for created liquids and modify spot sampling technique as necessary (optional)
The Welker SSM-1 Spot Sampling Manifold is designed to optimize natural gas spot sampling procedures by reducing liquid carryover and prevent the creation of liquids. Connect a Welker Sample Probe and a Welker Single Cavity Cylinder to the SSM-1 and you’ve got a complete spot sampling system.

Remove Free Liquids

Two styles of SSM-1 offer different levels of liquid separation upstream of the sample cylinder for a more representative spot sample. For free liquid removal, the standard SSM-1 with a Welker DP-15 Drip Pot is the answer. Acting as a sample line separator, the DP-15 collects free liquids from gaseous flow. Where created liquids are a primary concern, swap the DP-15 for a Welker Fluid Sentinel. The Fluid Sentinel combines a liquid separator and a sight glass to prevent free liquids from reaching the sample cylinder while allowing technicians to monitor the sample stream for present or created liquids.

Offset The Joule-Thomson Effect

Pressure and temperature changes that occur during repeated fill and empty cycles have the potential to distort your sample. The SSM-1’s pigtail keeps your sample representative by distancing the flow restriction from the sample cylinder. Pressure reduction during an empty cycle occurs at the pigtail’s valve, preventing the Joule-Thomson effect from cooling the cylinder and potentially condensing the sampled gas. When using an SSM-1 with Welker Fluid Sentinel, the technician can visually monitor the sample stream for created liquids and modify the spot sampling technique as necessary.
Features
  • Extension tube with valve
  • Welker DP-15 Drip Pot
  • Welker Fluid Sentinel liquid separator and sight glass (optional)
Benefits
  • Removes the flow restriction from the sample cylinder to offset the Joule-Thomson effect
  • Free liquid removal
  • Prevent free and created liquids from reaching the sample cylinder
  • Visually monitor for created liquids and modify spot sampling technique as necessary (optional)

Specifications

Materials of Construction

  • 316/316L Stainless Steel

Inlet Port

  • ¼” NPT

Outlet

  • ¼” NPT

Outlet Connection

  • ¼” FNPT

Operating Pressure

  • 2160 psig MAOP @ -20°F to 120°F
