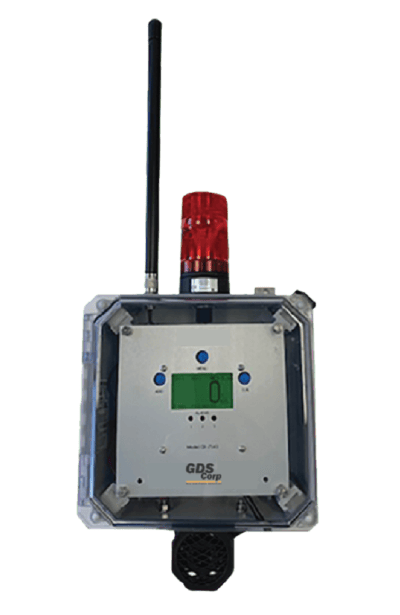

PROTECTOR6-RF Wireless Controller with Optional WirelessHART Interface

Brand: GDS Corporation
Request Information
CSA CSA
The GDS Corp Protector6-RF Wireless System Controller is designed to monitor and alarm on 900 MHz or 2.4 GHz wireless signals from up to six GDS Corp GASMAX MX or GASMAX CS wireless gas monitors, GASMAX GX wired gas monitors (when equipped with optional radio module), GDS-58X signal transmitters or GDS-59X switch state transmitters.

The Protector6-RF is an ideal solution for small or medium-sized gas detection systems or as a wireless interface for distributed systems that include both wired and wireless monitors.

An optional strobe or horn sounder can be installed for real-time local warning indications.

The small size allows multiple Protector6-RF units to be installed in the immediate vicinity of monitored areas, giving technicians information on any toxic gas that may be present.

The Protector6-RF controller includes an RS-485 serial MODBUS output that can allow remote PLCs or DCSs to monitor the selected input channels in real time.

An optional WirelessHART module is available that utilizes the MODBUS interface to provide HART connectivity
Features
  • Monitors and alarms on up to six wireless monitors, switch state transmitters or analog signal transmitters
  • Optional WirelessHART module with dedicated antenna
  • Three user-programmable 4A alarm relays with replaceable fuses
  • 128×64 graphic display screen
  • 900 MHz or 2.4 GHz radios
  • Wet-contact fault alarm relay
  • RS-485 serial output
The GDS Corp Protector6-RF Wireless System Controller is designed to monitor and alarm on 900 MHz or 2.4 GHz wireless signals from up to six GDS Corp GASMAX MX or GASMAX CS wireless gas monitors, GASMAX GX wired gas monitors (when equipped with optional radio module), GDS-58X signal transmitters or GDS-59X switch state transmitters.

The Protector6-RF is an ideal solution for small or medium-sized gas detection systems or as a wireless interface for distributed systems that include both wired and wireless monitors.

An optional strobe or horn sounder can be installed for real-time local warning indications.

The small size allows multiple Protector6-RF units to be installed in the immediate vicinity of monitored areas, giving technicians information on any toxic gas that may be present.

The Protector6-RF controller includes an RS-485 serial MODBUS output that can allow remote PLCs or DCSs to monitor the selected input channels in real time.

An optional WirelessHART module is available that utilizes the MODBUS interface to provide HART connectivity
Features
  • Monitors and alarms on up to six wireless monitors, switch state transmitters or analog signal transmitters
  • Optional WirelessHART module with dedicated antenna
  • Three user-programmable 4A alarm relays with replaceable fuses
  • 128×64 graphic display screen
  • 900 MHz or 2.4 GHz radios
  • Wet-contact fault alarm relay
  • RS-485 serial output
Close
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Power Input

  • 110/220 VAC
  • 12-35 VDC current draw 275 mA maximum
  • 75 W AC power supply for driving lights and horns

Protection

  • Power Electromagnetic Interference Filter (RFI)
  • 4-20 mA Input Surge Suppression
  • RS-485 and RS-232 Output Surge Suppression

Display

  • 128 x 64 resolution graphical LCD screen
  • Transflective (sunlight readable) with LED backlight

User Interface

  • Three push buttons (Menu, Add, Sub)

Analog Input

  • None

Wireless Input

  • Six wireless channels, user-programmable
  • 900 MHz radio: 52 Unique Networks
  • 2.4 GHz radio: 78 Unique Networks; 255 addresses per network

Alarm Settings

  • Three individual alarm setpoints per channel

Analog Output

  • None

Relay Output

  • Three dry-contact relays rated for 4A resistive with replaceable fuses
  • Single wet-contact FAULT output

Digital Output

  • RS-485 Serial MODBUS slave port OR WirelessHART® Interface

Temperature

  • -30°C to +70°C Operating Range

Housing

  • NEMA 4X fiberglass enclosure with clear window

Dimensions

  • 8” L x 8” W x 4” H (Does not include strobes or horns)
  • 12/8 lbs

Cerifications

  • For use in non-hazardous areas only

Hardware Warranty

  • One-year limited warranty
