s.130 NPT Stainless Steel 1/4" - 4" 1000 PSI Ball Valve

Brand: RuB
CRNs Available CRNs Available

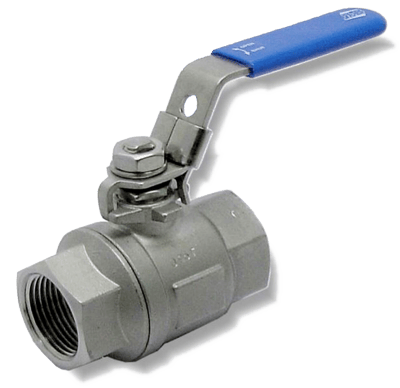

The RuB s.130 stainless steel ball valve, is a durable and reliable choice for use in many industrial and commercial valve applications.

Available for order in ¼” – 4” sizes, the s.130 is designed to work under a 1000 PSI non-shock cold working pressure. The s.130 features several key material and design choices which promote a long and reliable service life:
  • CF8M Stainless steel body and cap
  • Blowout-proof stainless steel stem
  • Plastic coated stainless steel handle
  • Glass filled PTFE seats
With a 100% full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • GOST-R (Russia)
Features
  • Dual Sealing System Allows Valve to be Operated in Either Direction Making Installation Easier
  • Handle Clearly Shows Ball Position
  • Silicone-free Lubricant on All Seals
  • Test Standard API 598
  • NACE Compliance MR-01-75
  • Handle Stops on Body to Avoid Stress at Stem
The RuB s.130 stainless steel ball valve, is a durable and reliable choice for use in many industrial and commercial valve applications.

Available for order in ¼” – 4” sizes, the s.130 is designed to work under a 1000 PSI non-shock cold working pressure. The s.130 features several key material and design choices which promote a long and reliable service life:
  • CF8M Stainless steel body and cap
  • Blowout-proof stainless steel stem
  • Plastic coated stainless steel handle
  • Glass filled PTFE seats
With a 100% full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • GOST-R (Russia)
Features
  • Dual Sealing System Allows Valve to be Operated in Either Direction Making Installation Easier
  • Handle Clearly Shows Ball Position
  • Silicone-free Lubricant on All Seals
  • Test Standard API 598
  • NACE Compliance MR-01-75
  • Handle Stops on Body to Avoid Stress at Stem
Close

Specifications

Brand

Certifications & Approvals

CRNs Available CRNs Available

Body

  • CF8M stainless steel body and cap

Stem

  • Blowout-proof stainless steel stem

Sealing

  • Glass filled PTFE seats

Upon Request

  • Oval lockable handle up to 2"

Flow

  • 100 % full port for maximum flow

Handle

  • Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load

Threads

  • NPT taper ANSI B.1.20.1 female by female threads

Working Pressure and Temperature

  • 1000 PSI non-shock cold working pressure
  • 150 PSI WSP steam rating
  • 2x 10-2 torr vacuum rating
  • * 150 psig non-shock steam working pressure. Not suitable for throttling steam.
  • -50° to +450° F
  • WARNING: freezing of the fluid in the installation may severely damage the valve

Approved by or in Compliance with

  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
