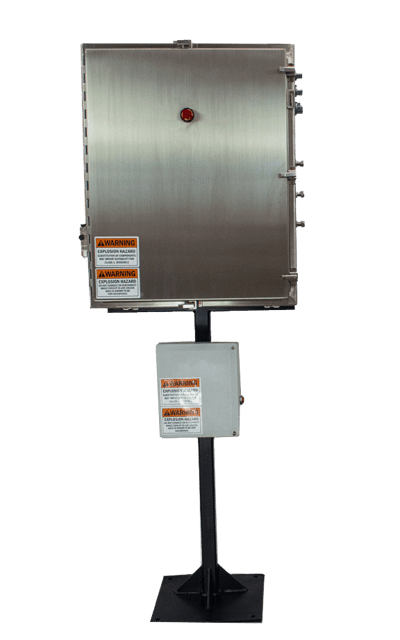

GPL 10000 Odorization System

Brand: GPL Odorizers
When requesting information, please download the Fillable PDF to provide details about your GPL Odorizer use case. Instructions for completing the form are in the footer of the document. Once completed, please upload the document with the Request for Information.
The GPL 10000 is intended for high-pressure and high-volume natural gas odorization applications at transmission companies and large city gate stations.

The odorizer has high rangeability, achieving precision odorization over a wide operating range of volume.

The industry-leading programmable logic controller (PLC) interfaces with the flow meter and its system components to maintain constant odorant injection proportional to the gas flow rate.
Features
A closed-loop system means no gas or odorant discharges to atmosphere
  • No smell during operation and maintenance
  • Lowers false leak calls and complaints
  • Eco-friendly; better for the environment
Does not use gas to actuate the system
  • Saves pipeline gas
Continuous odorant injection proportional to the gas flow rate
  • Eliminates under or over-odorization issues
  • Accurate and reliable odorant injection
High rangeability (100:1 turndown ratio)
  • Odorization over a wide range of flows
Few moving parts
  • Simple operation
  • Low maintenance
  • Long-lasting performance
  • No smelly pneumatic pumps to replace or maintain
Dual stroke electric-powered bellows pump
  • Back up if one pump ever fails
Modular solid-state manifold
  • Easy to replace and work on
Industry-leading PLC with large (7”), intuitive, color touchscreen and SD card data storage (Spanish mode available upon request)
  • Easy to learn and operate
  • The data stores on PLC SD Card permitting accessible audit-trail reports for regulatory or company inspections
  • Communicates real-time critical alarms and soft alarms (maintenance reminders)
  • Allows for Modbus (SCADA)
PLC Interfaces with SCADA Systems
  • SCADA systems save time and energy, increase reliability, reduces cost, improves worker safety, higher customer satisfaction, and improves utilization.
Wireless modem
  • Remote communication (using a wireless modem or Modbus) permits real-time mobile alerts and online monitoring to mobile phones and computers to prevent small problems from becoming big ones and speeds up restoration time.
Easy-to-use software provided
  • No additional software required
Class I Division 2, Groups C and D
  • Adheres to standards
The GPL 10000 is intended for high-pressure and high-volume natural gas odorization applications at transmission companies and large city gate stations.

The odorizer has high rangeability, achieving precision odorization over a wide operating range of volume.

The industry-leading programmable logic controller (PLC) interfaces with the flow meter and its system components to maintain constant odorant injection proportional to the gas flow rate.
Features
A closed-loop system means no gas or odorant discharges to atmosphere
  • No smell during operation and maintenance
  • Lowers false leak calls and complaints
  • Eco-friendly; better for the environment
Does not use gas to actuate the system
  • Saves pipeline gas
Continuous odorant injection proportional to the gas flow rate
  • Eliminates under or over-odorization issues
  • Accurate and reliable odorant injection
High rangeability (100:1 turndown ratio)
  • Odorization over a wide range of flows
Few moving parts
  • Simple operation
  • Low maintenance
  • Long-lasting performance
  • No smelly pneumatic pumps to replace or maintain
Dual stroke electric-powered bellows pump
  • Back up if one pump ever fails
Modular solid-state manifold
  • Easy to replace and work on
Industry-leading PLC with large (7”), intuitive, color touchscreen and SD card data storage (Spanish mode available upon request)
  • Easy to learn and operate
  • The data stores on PLC SD Card permitting accessible audit-trail reports for regulatory or company inspections
  • Communicates real-time critical alarms and soft alarms (maintenance reminders)
  • Allows for Modbus (SCADA)
PLC Interfaces with SCADA Systems
  • SCADA systems save time and energy, increase reliability, reduces cost, improves worker safety, higher customer satisfaction, and improves utilization.
Wireless modem
  • Remote communication (using a wireless modem or Modbus) permits real-time mobile alerts and online monitoring to mobile phones and computers to prevent small problems from becoming big ones and speeds up restoration time.
Easy-to-use software provided
  • No additional software required
Class I Division 2, Groups C and D
  • Adheres to standards

Specifications

Weight

  • 194 lb (88 kg)

Power

  • Typical: 24 Vdc, 0.036 HP, 27.05 W
  • Maximum: 24 Vdc, 0.193 HP, 124.8 W
  • Optional: AC

Gas Pipeline Pressure

  • Up to 1480 psi (102 bar)

Odorant Blanket Pressure

  • 20 psi (1 to 2 bar)

Data Logging

  • Hourly archives with audit trail, FTP data retrieval, internal micro SD storage

Enclosure

  • 304 Stainless Steel

Hazardous Area Classification

  • Class I, Div. 2, Groups C and D

Overall Dimensions

  • 32½” (H) x 25⅝” (W) x 10⅞” (D), 82.55 cm x 65.09 cm x 27.62 cm

Odorant Injection Rate, Continuous

  • From 2.4 MMSCFD to 240 MMSCFD(at an injection rate of 0.5 lb/MMSCFH)

Odorant Injection Rate, Batch

  • From 480 MSCFD to 2.4 MMSCFD(at an injection rate of 0.5 lb/MMSCFH)

Connections

  • Myers hub: (2) ¾ in NPT, (1) ½ in NPT Odorant outlet, odorant return, odorant inlet: ¼ in comp

Operating Temperature Range

  • 0° to 140 ̊F (-18° to 60° C)
  • Optional: Heater assembly available for below 0° F (-18° C)

User Interface Options

  • 320 x 240 LCD Color Graphics Display with Touch Screen
  • IP Remote Communication
