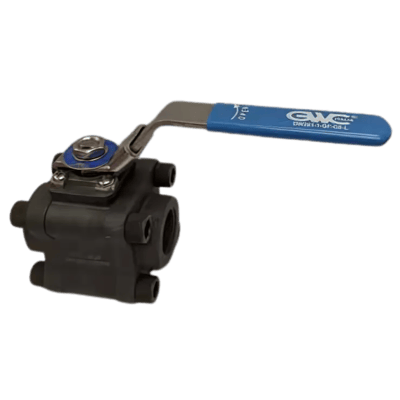

Model DW201 Floating Ball Valve 1/2" - 2" (2000PSI)

Brand: GWC USA

GWC Valves are in stock and ready to ship.

The GWC Italia model DW201 floating ball valve features a three-piece bolted body, full bore, free floating ball, API 607 fire-safe design, blow-out proof stem, forged & cast body and mounting pad.

Features
  • Design: API 608 / ASME B16.34
  • End to End: GWC Standard
  • End Threads: ASME B1.20.1 NPT
  • Socket Weld Ends: ASME B16.11
  • Butt Weld Ends: ASME B16.9
  • Rating: 2000 PSI / ASME CLASS 800

The GWC Italia model DW201 floating ball valve features a three-piece bolted body, full bore, free floating ball, API 607 fire-safe design, blow-out proof stem, forged & cast body and mounting pad.

Features
  • Design: API 608 / ASME B16.34
  • End to End: GWC Standard
  • End Threads: ASME B1.20.1 NPT
  • Socket Weld Ends: ASME B16.11
  • Butt Weld Ends: ASME B16.9
  • Rating: 2000 PSI / ASME CLASS 800
Close

Specifications

Brand

Pressure Rating

  • 2000PSI

Connection Type

  • FNPT

Bore

  • Full Bore

Certifications

  • API 608/ASME B16.34
  • TESTED TO API 598 STANDARDS
  • FIRE SAFE TO API 607
  • NACE

Materials of Construction

  • A350 LF2 BODY
  • 316SS TRIM

Sealing Materials

  • RTFE SEAT
  • GRAPHITE UNION SEAL
  • GRAPHITE PACKING
