Images are representations only.
*This model requires a hydraulic pump for operation. It can be found here: Hydraulic Pump Kit for C1200 & C36S | CR Wall
Description

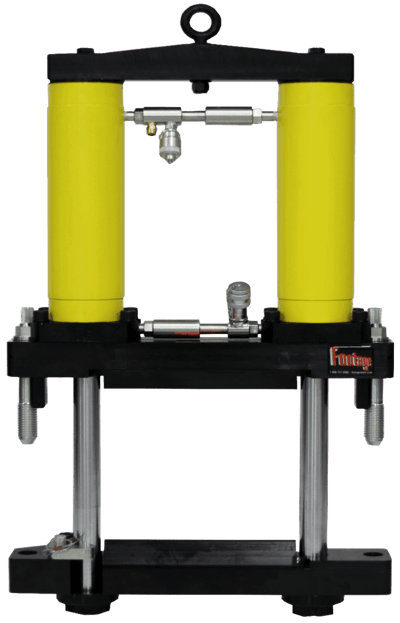

The model C36S Steel Squeeze Off Tool is designed to squeeze 3″ to 6″ pipe. The C36S features a Bottom swing out bars with positive safety latch. Dual-acting hydraulic cylinders for the more compact profile. Safety lock-down bolts to secure bars once squeeze is complete. Jaw profile will not cut or shear steel pipe.
Specifications
Specifications
Brand
Squeeze Capacity
- 3" - 6”
Operating Pressure
- 10,000 psi Max.
Width
- 39.5”
Height
- 26.5”
Weight
- 270 lbs
