Description

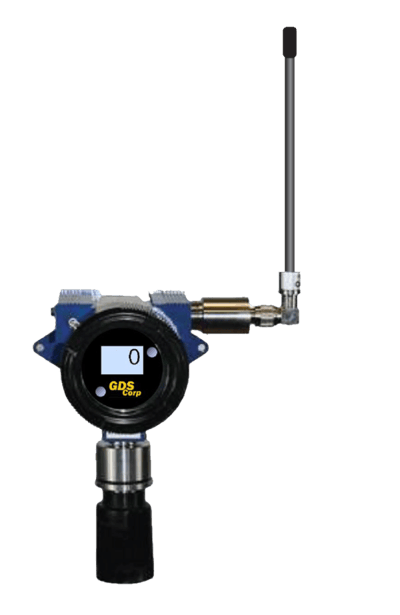

The GASMAX MX gas monitor is an ideal solution for wireless ambient gas detection applications.
The monitor is designed to detect a wide range of toxic gases and volatile organic compounds in potentially hazardous environments.
The monitor utilizes two internal non-rechargeable 19AH Lithium-Thionyl batteries that provide up to two year operation for electrochemical sensors and up to one year for low power infrared sensors.
Both 900 MHz and 2.4 GHz radios are available to support both North America and International installations.
The GASMAX GX supports both local and remote electrochemical, infrared or PID sensors.
Due to their power consumption, PID sensors have a much shorter battery life and should be considered for temporary installations only.
Several electrochemical sensors, including hydrogen sulfide and ammonia, are available in low, medium and high ranges.
The GASMAX MX features both push-buttons and non-intrusive magnetic switches that allow complete system configuration, regular calibration and product maintenance to be performed in the field without compromising the explosion-proof rating.
The display screen always shows the current calibrated level of gas present at the sensor.
The GASMAX MX supports both local and remote electrochemical and low power infrared sensors.
Electrochemical sensors can be used for distances of up to 100’ and infrared sensors 40’ from the monitor.
The GASMAX MX is CSA, ATEX and IECEx certified for use in hazardous areas and is ideal for power plants, refineries, tank farms, chemical plants, compressor stations, pipelines and other industrial installations where fixed gas detection is required for user safety and equipment protection.
Features- Certified for use in hazardous areas
- Single local or remote sensor
- Supports electrochemical, infrared or PID sensors
- Two-year battery life with EC sensors
- Graphic display shows gas value and alarm conditions
- Three pushbutton / magnetic interface for easy field setup
- 900 MHz or 2.4 GHz radio
- Adjustable gas background setting
- Automated or manual calibration with commonly available cal gas values
Configure
Specifications
Specifications
Brand
Certifications & Approvals
CSA Power Input
- Dual 3.6V 19 AH Lithium-Thionyl Battery, Non-rechargable
Battery Life
- 2 Years (EC Sensor), 1 Year (IR Sensor), 14 days (PID Sensor)
Display
- 102 x 64 resolution graphical LCD transflective (sunlight readable) screen with white LED backlight
User Interface
- Three manual push buttons (Menu, Add, Sub) and three correspond-ing magnetic non-intrusive switches for setup in hazardous areas
- User-programmable background gas setting
Sensor Input
- Electrochemical, infrared or PID sensors
Alarm Settings
- Two user-adjustable alarm settings
900 MHz Radio
- Output power 200 mW nominal
- 52 Network Options
- 255 Addresses per Network
2.4 GHz Radio
- Output power 125 mW nominal
- 78 Network Selections (2.4 GHz)
- 255 Addresses per Network
Operating Temperature
- Electronics -20°C to +60°C; Sensor limits may restrict operating temperature
Housing
- Aluminum instrument housing, 303 Stainless Steel sensor housing
Dimensions
- 8.3” W x 18” H x 5.3” D
- 6 lbs
Certifications
- CSA: Class I Division 1 Groups C and D, Ex d IIB T6 Gb; Class I Zone 1, AEx db IIB T6 Gb Tamb= -40°C to +54°C
- ATEX: EX II 2 (1) G; Ex db mb IIB ia [ia Ga] T6 Gb; Ta= -40°C to +54°C
- IECEx: Ex db mb ia [ia Ga] IIB T6 Gb; Ta = -40°C to +54°C
Hardware Warranty
- One-year limited warranty
Battery Warranty
- 90 days from ship date
Sensor Warranty
- Varies with gas type (warranty subject to verification by GDS Corp)
