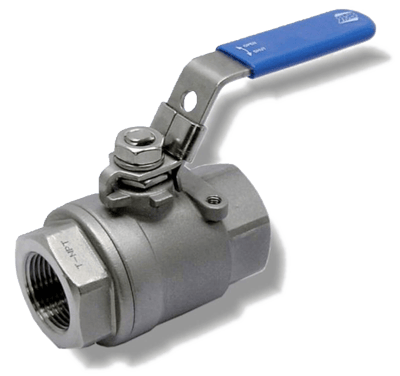

s.132 NPT Stainless Steel 1/4" - 2" 2000 PSI Ball Valve

Brand: RuB Inc
The RuB s.132 stainless steel ball valve, is a durable and reliable choice for use in many industrial and commercial valve applications.

Available for order in ¼” – 2” sizes, the s.132 is designed to work under a 2000 PSI non-shock cold working pressure for sizes ¼” - 1” and 1500 PSI non-shock cold working pressure for sizes 1-1/4” – 2”. The s.132 features several key material and design choices which promote a long and reliable service life:
  • CF8M Stainless steel body and cap
  • Blowout-proof stainless steel stem
  • Plastic coated stainless steel handle
  • ME-PTFE seats
With a 100% full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • GOST-R (Russia)
Features
  • Dual Sealing System Allows Valve to be Operated in Either Direction Making Installation Easier
  • Handle Clearly Shows Ball Position
  • Silicone-free Lubricant on all Seals
  • Test Standard API 598
  • NACE Compliance MR-01-75
  • Handle Stops on Body to Avoid Stress at Stem
The RuB s.132 stainless steel ball valve, is a durable and reliable choice for use in many industrial and commercial valve applications.

Available for order in ¼” – 2” sizes, the s.132 is designed to work under a 2000 PSI non-shock cold working pressure for sizes ¼” - 1” and 1500 PSI non-shock cold working pressure for sizes 1-1/4” – 2”. The s.132 features several key material and design choices which promote a long and reliable service life:
  • CF8M Stainless steel body and cap
  • Blowout-proof stainless steel stem
  • Plastic coated stainless steel handle
  • ME-PTFE seats
With a 100% full port design and dual seals, the valve can easily be installed in various systems with ease.

Approved by, or in compliance with:
  • GOST-R (Russia)
Features
  • Dual Sealing System Allows Valve to be Operated in Either Direction Making Installation Easier
  • Handle Clearly Shows Ball Position
  • Silicone-free Lubricant on all Seals
  • Test Standard API 598
  • NACE Compliance MR-01-75
  • Handle Stops on Body to Avoid Stress at Stem

Specifications

Brand

Stem

  • Blowout-proof stainless steel stem

Threads

  • NPT taper ANSI B.1.20.1 female by female threads

Handle

  • Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load

Approved by or in Compliance with

  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.

Body

  • CF8M stainless steel body and cap
  • Design specification ANSI B16.34 CLASS 900

Sealing

  • Molecular enhanced-PTFE (ME-PTFE) seats consist in virgin PTFE (no glass or carbon fillers are used) which, due to its improved molecular structure, surepass the mechanical properties of conventional filled PTFE materials. Used in fluid sealing applications it provides superior performance in terms of high temperature strength, reduced creep distortion, and resistance to chemical attack.

Flow

  • 100% full port for maximum flow

Working Pressure and Temperature

  • 2000 PSI from 1/4″ up to 1″, 1500 PSI from 1.1/4″ up to 2″ non-shock cold working pressure
  • 150 PSI WSP steam rating
  • 2×10¯² torr vacuum rating
  • *150 psig non-shock working steam pressure. Not suitable for throttling steam.
  • -50°F to +475°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
