Dival 600 Pressure Regulator
When requesting information, please download the Fillable PDF to provide details about your regulator use case. Instructions for completing the form are found in the footer of the document. Once completed, please upload the document with the Request for Information.
Description

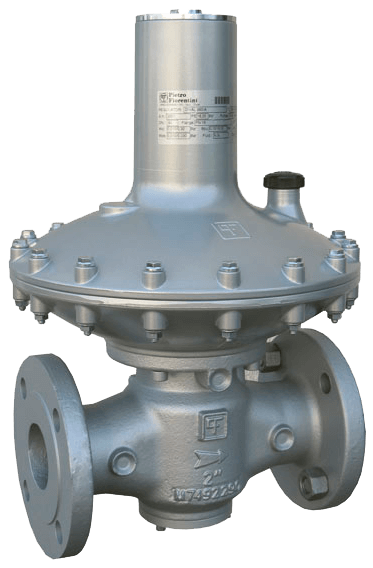

Dival 600 series pressure gas regulators are direct-acting devices for low and medium pressure applications controlled by a diaphragm and counter spring.
The modular design of the Dival 600 series pressure regulators allows the installation of an incorporated slam shut or device for use as an 'in line monitor' on the same body without changing the face-to-face dimension.
Furthermore the truly 'top entry design' allows easy regular maintenance without removing the unit from the line. The features of Dival 600 series regulators make them a product suitable for any application.
Features- Accuracy Class: up to 5
- Available Size DN: 1″, 1-1/2", 2″
- Closing Pressure Class SG: up to 10
- Design Pressure: up to 20 bar
- Design Temperature: from -20° to 60° C
- Flanging: Class 150 RF According to ASME B16.5 and ASME B16.42, Class ANSI 125 FF According to ASME B16.1, PN 16 and 25 According to ISO 7005-1 and ISO 7005-2
- Minimum Working Differential Pressure: 0.1 bar
- Outlet Pressure Range of Wd: from 12 to 4,400 mbar
- Range of Inlet Pressure bpu: from 0.1 to 20 bar
Specifications
Specifications
Design Pressure PS
- Up to 290 psig (20 bar)
Design Temperature
- -20° to 60° C (-4° to 140° F)
Flanging
- Class ANSI 150RF According to ANSI B16.5, ASME B16.42
- Class PN 16/25 According to ISO 7005-1, ISO 7005-2
- Class ANSI 125 FF According to ASME B16.1
Outlet Pressure of Wd
- DN 25: 12 to 340 mbar (5” w.c. to 4.9 psig) for Control Head BP/MP
- DN 40-50: 300 to 4,200 mbar (4.3 to 60.9 psig) for Control Head TR
- DN 40-50: 80 to 340 mbar (32” w.c. to 4.9 psig) for Control Head MP
- DN 25: 300 to 4,200 mbar (4.3 to 60.9 psig) for Control Head TR
- DN 40-50: 12 to 85 mbar (5” w.c. to 34” w.c.) for Control Head BP
Inlet Pressure Pu
- Maximum 20 bar (290 psig)
Threaded Connection
- DN 2” NPTF (Only Ductile Iron)
- DN 2” Rp
Size
- 1”, 1-1/4”, 1-1/2”, 2”
Ambient Temperature
- -20° to 60° C (-4° to 140° F)
Lock-Up Pressure Class SG
- Up to 10
Enclosure, Body Material
- Body: Cast Steel ASTM A216 WCB
- Body: Ductile Cast Iron
Head Cover Material
- Die Cast Alluminium
Material of Construction
- Seals: Nitril Rubber
- Valve Seat: Brass
- Diaphgram: Rubberized Canvas
