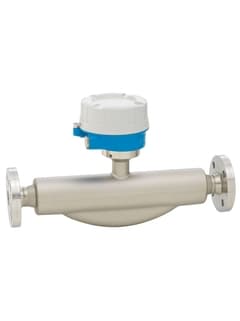

Images are representations only.
Description
Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments it is suited for the broadest range of applications. With its innovative remote transmitter Promass F 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
Measuring principle operates independently of physical fluid properties such as viscosity or density
Highest measurement performance for liquids and gases under varying, demanding process conditions
Device properties
Mass flow: measurement error ±0.05 % (PremiumCal)
Medium temperature: -196 to 350 °C (-320 to 662 °F)
Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter
Highest process safety – immune to fluctuating and harsh environments
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in-/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology
Specifications
Specifications
Brand
Sensor features
- Highest process safety – immune to fluctuating and harsh environments.
- Fewer process measuring points – multivariable measurement (flow, density, temperature).
- Space‐saving installation – no in-/outlet run needs.
- Mass flow: measurement error ±0.05 % (PremiumCal).
- Medium temperature: –196 to 350 °C (–320 to 662 °F).
- Nominal diameter: DN 8 to 250 (³⁄₈ to 10").
Transmitter features
- Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses.
- Reduced complexity and variety – freely configurable I/O functionality.
- Integrated verification – Heartbeat Technology.
- Remote version with up to 4 I/Os.
- Backlit display with touch control and WLAN access.
- Standard cable between sensor and transmitter.
Nominal diameter range
- DN 8 to 250 (⅜ to 10")
Wetted materials
- Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
- Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Measured variables
- Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error
- Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
- Volume flow (liquid): ±0.10 %
- Mass flow (gas): ±0.25 %
- Density (liquid): ±0.0005 g/cm³
Measuring range
- 0 to 2 200 000 kg/h (0 to 80 840 lb/min)
Max. process pressure
- PN 100, Class 600, 63K
Medium temperature range
- Standard: –50 to +150 °C (–58…+302 °F)
- Option: –50 to +240 °C (–58…+464 °F)
- High temperatur option: –50 to +350 °C (–58…+662 °F)
- Option: –196 to +150 °C (–320 to +302 °F)
Ambient temperature range
- Standard: –40 to +60 °C (–40 to +140 °F)
- Option: –60 to +60 °C (–76 to +140 °F)
Sensor housing material
- Standard: 1.4301 (304), corrosion resistant
- Option: 1.4404 (316L)
- Sensor connection housing (standard): AlSi10Mg, coated
- Sensor connection housing (option): 1.4301 (304); 1.4404 (316L); 1.4409 (CF3M) similar to 316L
Transmitter housing material
- AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat
Degree of protection
- Sensor remote version (standard): IP66/67, type 4X enclosure
- Sensor remote version (option): IP69.
- Transmitter remote version: IP66/67, Type 4X enclosure
Display/Operation
- 4-line backlit display with touch control (operation from outside)
- Configuration via local display and operating tools possible
Outputs
- 4 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive)
- Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive)
- Relay output
Inputs
- Status input 4-20 mA input
Digital communication
- HART
- PROFIBUS DP
- PROFIBUS PA
- FOUNDATION Fieldbus
- Modbus RS485
- PROFINET
- PROFINET over Ethernet-APL
- Ethernet/IP
- OPC-UA
Power supply
- DC 24 V
- AC 100 to 230 V
- AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals
- ATEX
- IECEx
- cCSAus
- NEPSI
- INMETRO
- EAC
- KC
Product safety
- CE
- C-tick
- EAC marking
Functional safety
- Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificates
- Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) MI-005 (Liquids other than water, Hydrocarbons, LPG, cryogenic liquids) NTEP (Liquids other than water, LPG, cryogenic liquids) MC (Liquids other than water, gases, cryogenic liquids) MI-002, PTB
Pressure approvals and certificates
- PED, CRN, AD 2000
Marine approvals and certificates
- certificates LR approval, DNV approval, ABS approval, BV approval, CCS approval
Material certificates
- 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
Hygienic approvals and certificates
- 3-A, EHEDG, cGMP
