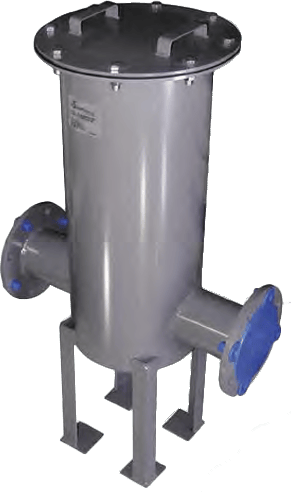

Series E20/E22 In-Line Air & Gas Filter

Brand: Shawndra Products, Inc
Rugged Enameled Steel Construction Series

E20 & E22 air/gas filters utilize a single self sealing cylindrical filter element to provide the ultimate in protection for compressors, blowers, turbines, engines, and other pipeline equipment.

Fabricated from heavy gauge enameled or 304 stainless steel, they utilize a bolt seal closure with neoprene or Teflon gasketing for service to 5 psid. Any model can be modified to more exactly suit your needs.

Connections to 24"

Male NPT (MT) or flat face flanges (FF) are std. Flanges match diameter & drilling for 150# ANSI standard.

Specify optional female NPT (FT), bevel (BE) or plain cut (PE) stub necks where you wish to weld in place. Increased or decreased connections are also available on any model.

Choice of Filter Elements

Series E22 In-Line Air & Gas Filters are similar to enameled steel series E20 but are constructed instead from 304 stainless steel.

Filter elements with 304 SS media support screen and/or center cores are also available. (Replace the “K” in the filter element part number with an “N” for 304SS core and 304SS media support screen, or a “Q” for 304SS core with epoxy coated aluminum media support screen).

These textile media elements are superior for low ΔP, high dirt holding capacity and exceptional efficiency. They stop pipe scale and other contaminates before they can travel downstream.

Select from 10µ, 4µ High Efficiency, or 0.3µ coalescing filter elements as your needs dictate to remove 98% of all dust, dirt, and if coalescing, fine mists. Addt'l. media and element styles are available for services at elevated temperatures or specific chemistries.
Features
  • Air/Gas Flows to 20,000 SCFM
  • Low ΔP / High Flow Design
  • 304SS Throat Safety Cages Std.
  • Connection Sizes to 24"
  • Bolt Seal Closure to 5 psid
  • Options: ΔP Taps, Angle legs, ΔP gauge
Rugged Enameled Steel Construction Series

E20 & E22 air/gas filters utilize a single self sealing cylindrical filter element to provide the ultimate in protection for compressors, blowers, turbines, engines, and other pipeline equipment.

Fabricated from heavy gauge enameled or 304 stainless steel, they utilize a bolt seal closure with neoprene or Teflon gasketing for service to 5 psid. Any model can be modified to more exactly suit your needs.

Connections to 24"

Male NPT (MT) or flat face flanges (FF) are std. Flanges match diameter & drilling for 150# ANSI standard.

Specify optional female NPT (FT), bevel (BE) or plain cut (PE) stub necks where you wish to weld in place. Increased or decreased connections are also available on any model.

Choice of Filter Elements

Series E22 In-Line Air & Gas Filters are similar to enameled steel series E20 but are constructed instead from 304 stainless steel.

Filter elements with 304 SS media support screen and/or center cores are also available. (Replace the “K” in the filter element part number with an “N” for 304SS core and 304SS media support screen, or a “Q” for 304SS core with epoxy coated aluminum media support screen).

These textile media elements are superior for low ΔP, high dirt holding capacity and exceptional efficiency. They stop pipe scale and other contaminates before they can travel downstream.

Select from 10µ, 4µ High Efficiency, or 0.3µ coalescing filter elements as your needs dictate to remove 98% of all dust, dirt, and if coalescing, fine mists. Addt'l. media and element styles are available for services at elevated temperatures or specific chemistries.
Features
  • Air/Gas Flows to 20,000 SCFM
  • Low ΔP / High Flow Design
  • 304SS Throat Safety Cages Std.
  • Connection Sizes to 24"
  • Bolt Seal Closure to 5 psid
  • Options: ΔP Taps, Angle legs, ΔP gauge

Specifications

Intake Air Flow

  • Up to 20,000 scfm

Enclosure / Body Material

  • Enameled Steel
  • 304 Stainless Steel

Connection Size

  • 1-1/2” to 24”

Connection Type

  • Male NPT
  • Flange

Filter Element

  • 10 μ
  • High Efficiency 4 μ
  • Coalecing 0.3 μ
