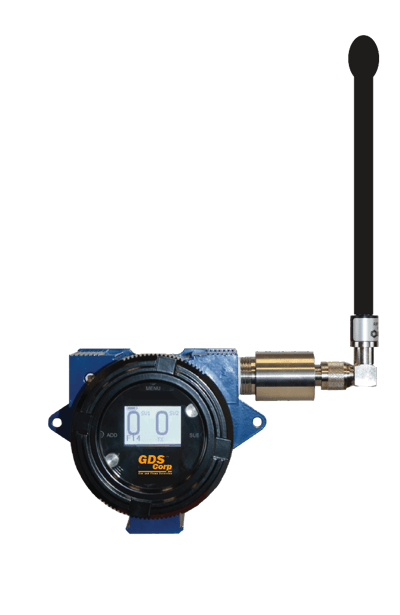

GDS-58X Wireless Switch State Transmitter

Brand: GDS
CSA CSA
The GDS-58X explosion-proof wireless 4-20 mA State Transmitter accepts normally-open or normally-closed switch contacts and broadcasts them on GDS Corp wireless networks.

Magnetic switches allow for setup and diagnostics in hazardous areas without opening the enclosure.

The GDS-58X allows any two switch inputs to become part of an advanced GDS Corp wireless network.
Features
  • Battery operated for maximum isolation
  • Monitors normally open and normally closed switches
  • Transmits state on programmed interval and immediately on switch state change
  • Two-year battery life using single 3.6 V lithium battery
  • 900 MHz or 2.4 GHz radio
  • Graphical LCD with LED backlight
  • Operating temperature range -40°C to +60°C
The GDS-58X explosion-proof wireless 4-20 mA State Transmitter accepts normally-open or normally-closed switch contacts and broadcasts them on GDS Corp wireless networks.

Magnetic switches allow for setup and diagnostics in hazardous areas without opening the enclosure.

The GDS-58X allows any two switch inputs to become part of an advanced GDS Corp wireless network.
Features
  • Battery operated for maximum isolation
  • Monitors normally open and normally closed switches
  • Transmits state on programmed interval and immediately on switch state change
  • Two-year battery life using single 3.6 V lithium battery
  • 900 MHz or 2.4 GHz radio
  • Graphical LCD with LED backlight
  • Operating temperature range -40°C to +60°C
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Function

  • Wireless State Transmitter

Power Input

  • 3.6 V 19AH Battery

Battery Life

  • Up to six months

Display

  • 102 x 64 pixel LCD; Transflective sun-readable with backlight

User Interface

  • Magnetic Wand

Inputs

  • Dual SPDT Inputs

Outputs

  • 900 MHz (200 mW) or 2.4 GHz (125 mW) RF

Connectors

  • External N-Female

Temperature

  • -40° to 60° C

Dimensions

  • 6" W x 12.2" H x 5.5" D
  • 4.8 lb

Certifications

  • QPS Certified CSA Certified Class I, Div. 1 Groups C & D, Ex d IIB, Zone 1 Aex d IIb

Warranty

  • One year limited
