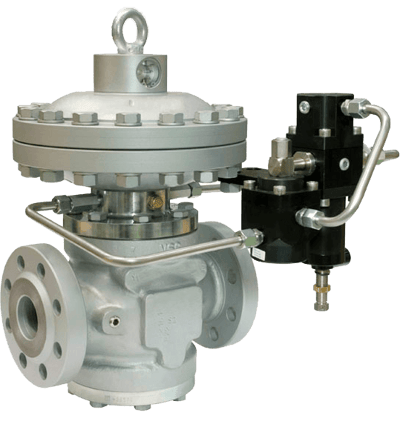

Reflux 819 Pressure Regulator

Brand: Pietro Fiorentini S.p.A.
When requesting information, please download the Fillable PDF to provide details about your regulator use case. Instructions for completing the form are found in the footer of the document. Once completed, please upload the document with the Request for Information.
Reflux 819 is a pilot-operated gas pressure regulator. It is particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks, and it can be used with previously filtered non-corrosive gases.

Reflux 819 is classified as Fail Close according to the European Standard EN 334.

Reflux 819 is Hydrogen Ready for NG-H2 blending.
Features
  • Accuracy class: up to 1
  • Available size DN: 1″, 2″, 3″, 4″, 6″, 8″, 10″, 12″
  • Closing pressure class SG: up to 2.5
  • Design pressure: up to 100 bar
  • Design temperature: from -10° to +60° C (higher or lower temperatures on demand)
  • Flanging: class 150, 300, 600 RF or RTJ according to ASME B16.5 and PN 16 according to ISO 7005
  • Minimum working differential pressure: 450 mbar
  • Outlet pressure range of Wd: from 0.3 to 74 bar
  • Range of inlet pressure bpu: from 0.5 to 100 bar
Reflux 819 is a pilot-operated gas pressure regulator. It is particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks, and it can be used with previously filtered non-corrosive gases.

Reflux 819 is classified as Fail Close according to the European Standard EN 334.

Reflux 819 is Hydrogen Ready for NG-H2 blending.
Features
  • Accuracy class: up to 1
  • Available size DN: 1″, 2″, 3″, 4″, 6″, 8″, 10″, 12″
  • Closing pressure class SG: up to 2.5
  • Design pressure: up to 100 bar
  • Design temperature: from -10° to +60° C (higher or lower temperatures on demand)
  • Flanging: class 150, 300, 600 RF or RTJ according to ASME B16.5 and PN 16 according to ISO 7005
  • Minimum working differential pressure: 450 mbar
  • Outlet pressure range of Wd: from 0.3 to 74 bar
  • Range of inlet pressure bpu: from 0.5 to 100 bar

Specifications

Accuracy Class

  • Up to 1 %

Available Size DN

  • 12”
  • 8”
  • 6”
  • 4”
  • 3”
  • 2”
  • 1”
  • 10”

Closing Pressure Class SG

  • 5 % to 1 % Depending on Outlet Pressure

Design Pressure

  • Maximum 1,450 psig

Design Temperature

  • 10° to 60° C (14° to 140° F)

Flanging

  • 150-300-600 RF or RTJ According to ANSI B16.5 and PN 16 According to ISO 7005

Maximum Working Differential Pressure

  • 99.7 psig

Minimum Working Differential Pressure

  • 7.25 psig

Outlet Pressure Range of Wd

  • 5 to 1073 psig

Range of Inlet Pressure Bpu

  • 11.6 to 1450 psig
