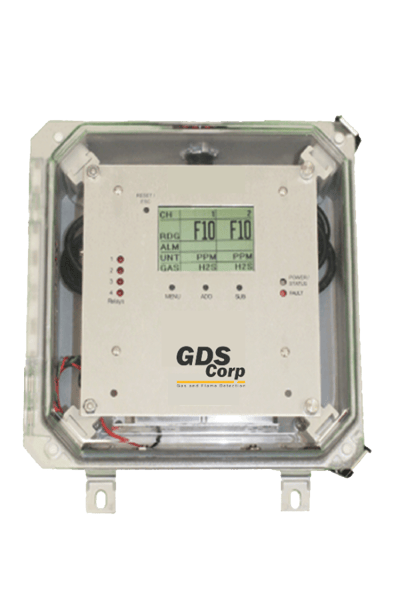

PROTECTOR2 Dual Channel Alarm & Display Controller

Brand: GDS Corporation
CSA CSA
The GDS Corp PROTECTOR2 System Controller is designed to provide power for and monitor signals from one or two industry-standard 4-20 mA devices, including all GDS Corp gas monitors, sample draw monitors and process monitors.

The PROTECTOR2 has two ESD-protected analog inputs that operate over the full range of 4-20 mA devices.

The calibrated value of each input is shown on the graphical LCD screen along with alarm and status information.

The PROTECTOR2 includes four dry-contract alarm relays with user-adjustable alarm settings that may be set to either latching or non-latching operation.

When latched, the RESET / ESC button can be used to clear the latched alarm.

The PROTECTOR2 controller also includes an RS-485 serial MODBUS output that can allow remote PLCs or DCSs to monitor the input channels in real time.

When configured with an external AC power supply, the Protector2 can supply up to 25 watts of external DC power for connected devices.
Features
  • Two surge-protected 4-20 mA analog inputs
  • Three user-programmable alarm levels per channel
  • Power input +12 to +35 VDC or 110/220 VAC
  • Optional AC power supply provides up to 15 watts for external devices
  • Four pushbutton user interface
  • Four dry-contact alarm relays with 4A replaceable fuses
  • RS-485 serial MODBUS port
  • Wet-contact FAULT relay
  • Operating temperature -40°C to +70°C
The GDS Corp PROTECTOR2 System Controller is designed to provide power for and monitor signals from one or two industry-standard 4-20 mA devices, including all GDS Corp gas monitors, sample draw monitors and process monitors.

The PROTECTOR2 has two ESD-protected analog inputs that operate over the full range of 4-20 mA devices.

The calibrated value of each input is shown on the graphical LCD screen along with alarm and status information.

The PROTECTOR2 includes four dry-contract alarm relays with user-adjustable alarm settings that may be set to either latching or non-latching operation.

When latched, the RESET / ESC button can be used to clear the latched alarm.

The PROTECTOR2 controller also includes an RS-485 serial MODBUS output that can allow remote PLCs or DCSs to monitor the input channels in real time.

When configured with an external AC power supply, the Protector2 can supply up to 25 watts of external DC power for connected devices.
Features
  • Two surge-protected 4-20 mA analog inputs
  • Three user-programmable alarm levels per channel
  • Power input +12 to +35 VDC or 110/220 VAC
  • Optional AC power supply provides up to 15 watts for external devices
  • Four pushbutton user interface
  • Four dry-contact alarm relays with 4A replaceable fuses
  • RS-485 serial MODBUS port
  • Wet-contact FAULT relay
  • Operating temperature -40°C to +70°C

Specifications

Certifications & Approvals

CSA CSA

Power Input

  • 12-35 VDC Standard (225 mA maximum)
  • Optional external 25 watt 85 to 264 VAC power supply

Protection

  • Power Electromagnetic Interference Filter (RFI)
  • 4-20 mA Input Surge Suppression
  • RS-485 and RS-232 Output Surge Suppression

Display

  • 160x104 resolution graphical LCD screen
  • Transflective (sunlight readable) with LED backlight

User Interface

  • Four manual push buttons (Menu, Add, Sub, Reset / Esc)

Analog Output

  • Two industry-standard 4-20 mA current loop inputs with DC source excitation

Alarm Settings

  • Individual per channel

Standard Output

  • Standard 2-wire loop interface, 4-20 mA during normal operation

Relay Output

  • Four dry-contact relays rated for 4 A resistive with replaceable fuses

Digital Output

  • RS-485 Serial slave port

Optional Radio

  • None

Temperature

  • -20°C to +70°C Operating Range

Housing

  • NEMA 4X fiberglass enclosure with Window

Dimensions

  • 8” H x 8” W x 4” D (Does not include strobes or horns)
  • 8.2 lbs

Cerifications

  • For use in non-hazardous areas only

Hardware Warranty

  • One-year limited warranty
