Description

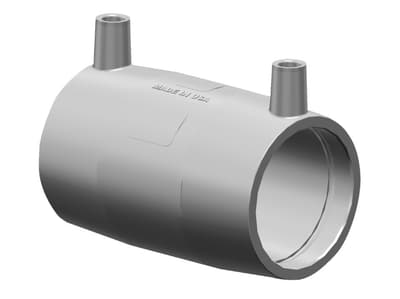

GF Central Plastics’ Electrofusion fittings are designed and manufactured in accordance with ASTM F-1055 for use with pipe conforming to ASTM D2513/3035, F-714 and with Butt fittings conforming to ASTM D3261 as applicable.
These fittings can be supplied with an integral identification resistor which is recognized by GF Central Plastics’ processors to automatically set the proper fusion parameters. Electrofusion fittings are supplied with a 24 digit ISO compliant barcode label which facilitates the simple input of correct fusion parameters.
PE2406/PE2708 and PE3408/PE4710 Electrofusion fittings are produced from high quality virgin resins that have designated listings of PE2406/2708 or PE3408/ PE4710 both of which comply with ASTM D3350.
Features- Compatible for Fusion to Either PE2406/PE2708 or PE3408/PE4710 and Other Similar Pipe.
- Cross-fusion Compatible without Special Fusion Instructions
- Pressure Rated for Natural Gas and Potable Water Applications.
- CSA Certification - Where Applicable
- Available in Metric Sizes
Configure
Specifications
Specifications
Brand
Certifications & Approvals
CSA Pin Type
- 4.7R
- 4.7 Pin with Resistor
Approval
- ASTM D2513
- ASTM F1055
- CSA B137.4.1
- ASTM D2513/F1055 - Industrial Non-Compliant ASTM Fittings
