GASMAX CS Battery-Powered Wireless Gas Monitor with Internal Antenna

Brand: GDS Corporation
Request Information
CSA CSA

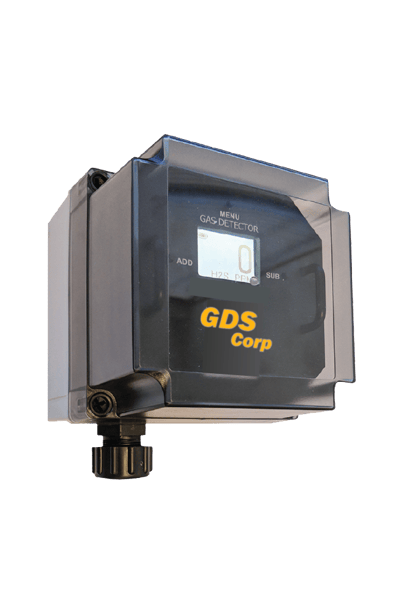

The GDS Corp GASMAX CS single-channel compact wireless gas monitor supports a wide range of sensors for toxic or volatile organic compounds (VOCs).

The monitor is battery powered for easy installation and includes push-buttons for fast setup and calibration as well as magnetic switches that do not require opening the enclosure.
Features
  • Supports electrochemical, infrared or PID sensors
  • Dual 3.6AH easily-replaceable Lithium-Thionyl batteries
  • Two-year battery life for electrochemical sensors
  • Adjustable minimum gas setting extends battery life in areas with background gas
  • 900 MHz or 2.4 GHz radio
  • Three-button user interface eliminates need to open enclosure
  • Easy calibration
The GDS Corp GASMAX CS single-channel compact wireless gas monitor supports a wide range of sensors for toxic or volatile organic compounds (VOCs).

The monitor is battery powered for easy installation and includes push-buttons for fast setup and calibration as well as magnetic switches that do not require opening the enclosure.
Features
  • Supports electrochemical, infrared or PID sensors
  • Dual 3.6AH easily-replaceable Lithium-Thionyl batteries
  • Two-year battery life for electrochemical sensors
  • Adjustable minimum gas setting extends battery life in areas with background gas
  • 900 MHz or 2.4 GHz radio
  • Three-button user interface eliminates need to open enclosure
  • Easy calibration
Close
Close

Specifications

Brand

Certifications & Approvals

CSA CSA

Sensor Type

  • Electrochemical (EC), Infrared (IR), PID

Battery Life

  • EC - 2 years max
  • IR - 1 year max
  • PID - 2 weeks max

Display

  • 102x64 LCD Alarm LEDs

User Interface

  • Pushbutton and Non- Intrusive Magnetic

Outputs

  • 900 MHz or 2.4 GHz radio modem

Dimensions

  • 5”W x 5”H x 5”D

Enclosure

  • NEMA C1 4, 4X IP66 UL508

Warranty

  • One year limited
